Introduction
This high-precision measurement instrument is equipped with a 7.0-inch high-contrast LCD touchscreen and an intelligent operating system for easy management of users, calibration, methods, and data. It offers multiple reading modes—automatic, timed, and continuous—and guarantees accurate results through automatic or manual temperature compensation. The device can store up to 1,000 GLP-compliant data sets per parameter, provides data analysis for review and comparison, and supports USB and RS-232 connectivity. With IP54 waterproof protection and flexible calibration options, it is engineered for reliable and convenient use in both laboratory and field settings.
-
Specification
| Model | EC600L | |
| Parameters | EC/Temp.(Resistivity/TDS/Sal.) | |
| Conductivity | Range | 0.000 μ S/cm to 3000 mS/cm |
| Resolution | 0.001 μ S/cm minimum, various with range selection | |
| Accuracy | ± 0.5% FS | |
| Reference Temperature | 5, 10, 15, 18, 20, 25 ºC | |
| Resistivity | Range | 5.00 Ω ·cm~100.00 M Ω ·cm |
| Resolution | 0.01 Ω ·cm minimum | |
| Accuracy | ± 0.5% FS | |
| TDS | Range | 0.000 mg/L~1000 g/L |
| Resolution | 0.001ppm minimum, changed with range | |
| Accuracy | ± 0.5%FS | |
| Salinity | Type | NaCl% |
| Range | (0.00~8.00)% | |
| Resolution | 0.01% | |
| Accuracy | ± 0.1% | |

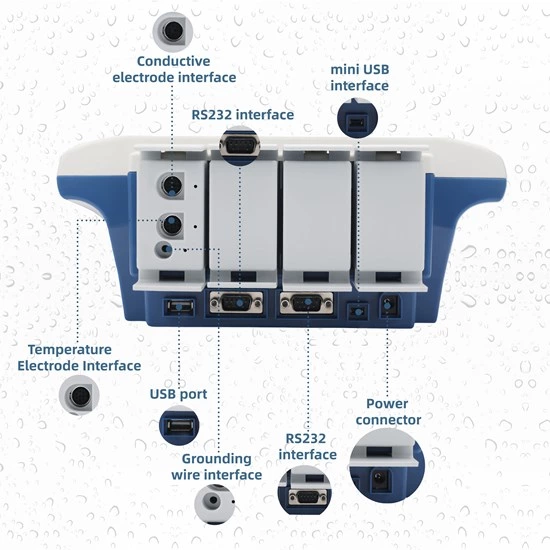

| Inputs | Temp. Probe | 6-pin Mini-DIN |
| Conductivity Probe | 8-pin Mini-DIN | |
| Outputs | USB, RS 232 | USB 2.0 flash memory device, printer, PC |
| Temperature Range | -5 to 130 ºC | |
| Power | AC Adapter, 100-240V AC input, DC24V output | |
| Data Storage | 1000 Groups | |
| IP Rating | IP54 | |
| Dimensions | 280 × 280 × 130 mm | |
| Weight | 2500g (5.51 lb) | |
-
FEATURES
- Display: Color High contrast LCD touchscreen, 7.0 inches.
- System: Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
- Reading: Multi-reading feature allows auto-read, timed-read and continuous-read.
- Compensation: Automatic/Manual temperature compensation ensures accurate results.
- Storage: Data Storage 1000 sets for each parameter (GLP-compliant).
- Analysis: Data analysis feature helps user review, compare and recalculate results.
- Communication: Support for USB or RS-232 communication.
- Reset: Reset feature automatically resumes all settings back to factory default options.
- Protection: IP54 waterproof.
- Calibration: 1-5 points calibration with Standard Recognition.
- Settings: Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
- Type: Temperature compensation type (none, linear, pure water).
