Sinomeasure provides reliable and hygienic measurement solutions for the food and beverage industry. Our instruments are designed to meet strict sanitary standards while ensuring high accuracy and process stability.
From liquid ingredients and CIP systems to bottling and filling lines, Sinomeasure helps manufacturers maintain consistent product quality and operational efficiency.

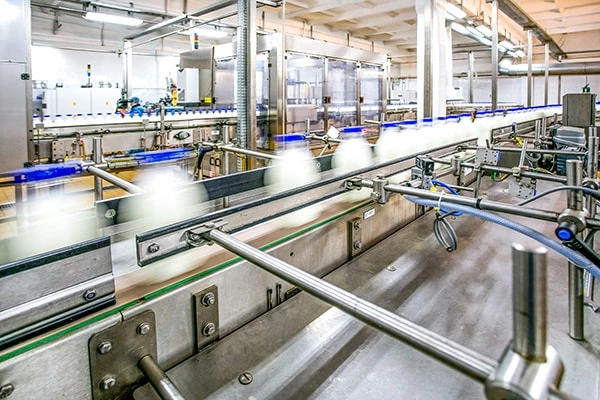

Beverage production and bottling processes
Dairy and milk processing systems
Brewing and fermentation monitoring
Food ingredient mixing and batching control
Clean-in-place (CIP) and sterilization systems
CIP capability means the instrument can withstand the high temperatures >100℃, aggressive chemicals (acid/alkaline), and high flow rates used during the cleaning cycles. Sanitary pressure and temperature sensors feature 3A or EHEDG approved flush-mount designs with Ra ≤0.8μm surface finishes, preventing microbial buildup and ensuring process sterility.
The Coriolis mass flow meter is the optimal solution as it measures mass flow directly along with density and temperature, eliminating volumetric errors due to fluid variations. It provides the highest accuracy for precise ingredient dosing and blending (±0.1), guaranteeing brand-to-brand consistency.
For liquid products like milk or beverages, hydrostatic level or non-contact radar are suitable, utilizing hygienic tri-clamp connections. For large storage of grains or sugar, guided wave radar or capacitance probes provide robust measurement through dust and varying bulk densities.
High-precision conductivity analyzers are used as product/phase separation switches. They detect the sharp change in conductivity between the product (e.g., milk) and the cleaning agent (e.g., caustic soda) to automatically switch valves, minimizing waste of both product and cleaning chemicals.
A miniature RTD (PT100) with a fast-response time and a shallow immersion length is ideal. Its stainless steel construction and high stability are critical for applications like Pasteurization (HTST - High-Temperature Short-Time), ensuring thermal kill without compromising product quality.
Positive displacement (PD) flow meters are ideal for highly viscous, non-abrasive products. They measure flow by separating the fluid into fixed, known volumes, providing high accuracy that is less sensitive to variations in viscosity than magnetic or ultrasonic technologies.
non-contact radar level transmitters with integrated antenna cooling or a drip-off antenna design are recommended. These features prevent condensation from distorting the radar signal and ensure the electronics remain within their operating temperature range.
A flush diaphragm pressure transmitter with a hygienic seal is used. The direct, non-pocket forming diaphragm eliminates dead spaces where bacteria can harbor, and its material compatibility ensures safety with all food-grade packaging materials.
Sinomeasure has been dedicated to industrial process automation for decades, focusing on the research, development, and manufacturing of precision sensors and instruments. Our main products include water analysis instruments, recorders, pressure transmitters, flowmeters, and other field instruments used in a wide range of process industries.
