Introduction
This portable meter features a 4.3-inch high-contrast LCD touchscreen and an intelligent operating system for managing users, calibration, electrodes, methods, data, and logs. It offers automatic, timed, and continuous measurement modes with both automatic and manual temperature compensation for precise results. The auto-hold function detects and locks stable readings. GLP-compliant storage accommodates up to 1,000 data sets per parameter, and built-in analysis tools allow easy review and recalculation. With USB connectivity, automatic power-off for extended battery life, factory reset, and IP65 waterproof protection, the meter delivers reliable performance for field and outdoor applications.
-
Specification
| Model | M510T | |
| Parameters | pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation) | |
| pH | Range | -2.000 to 20.000 pH |
| Resolution | 0.1, 0.01, 0.001pH | |
| Accuracy | ±0.002 pH | |
| mV/ORP | Range | -2000.00 to 2000.00 mV |
| Resolution | 0.1, 0.01 mV | |
| Accuracy | ±0.1 mV or ±0.03% | |
| ISE | Range | 1.000e-9 to 9.999e+9 |
| Resolution | Up to 4 significant digits | |
| Accuracy | ±0.3% | |
| Dissolved Oxygen Concentra- tion |
Range | 0.00 to 99.99 ppm |
| Resolution | 0.01 ppm | |
| Accuracy | ±0.10ppm, 0.00~50.00ppm ±0.50ppm, 50.0~99.99ppm |
|
| Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.1 | |
| Inputs | pH Electrode | BNC(Q9) |
| DO with Temp. Probe | 4-pin aviation connector | |
| Conductivity with Temp. Probe | 5-pin aviation connector | |
| Outputs | USB | USB 2.0 flash memory device, PC, scanner |
| Data Storage | 1000 Groups | |
| Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output | |
| Dimensions | 90×255×40 mm | |
| Weight | 500g (1.1 lb) | |
-
FEATURES

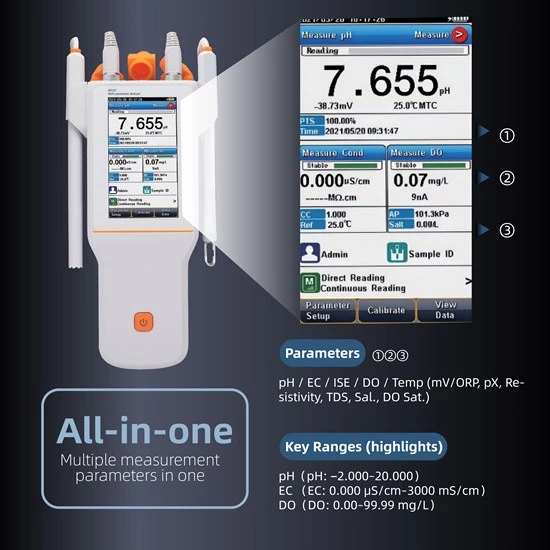

- Display: Color high contrast LCD touchscreen, 4.3 inches.
- System: Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, log management, etc.
- Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
- Accuracy: Automatic/Manual temperature compensation ensures accurate results.
- Stability: Auto-hold feature senses and locks the measurement endpoint.
- Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
- Analysis: Data analysis feature helps users review, compare, and recalculate results.
- Connectivity: Support for USB communication.
- Power: Auto-power off feature effectively extends the battery service life.
- Recovery: Reset feature automatically resumes all settings to factory default options.

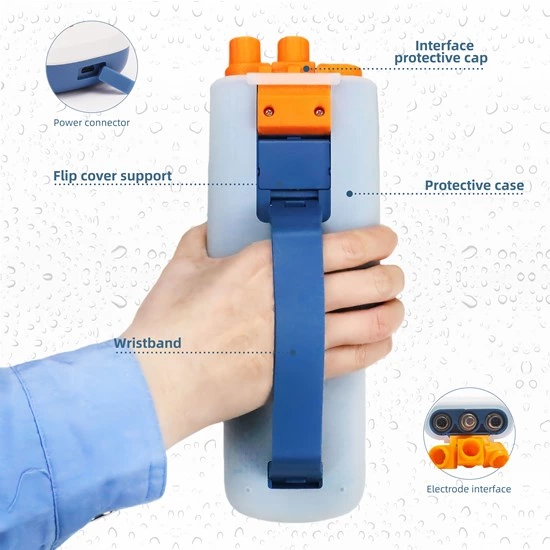

- Protection: IP65 waterproof. The portable meter is suitable for field and outdoor measurements.
