Specification
| Product | Easy Fuzzy PID Regulator |
| Model | SIN-1300 |
| Display | Dual-screen LED display |
| Dimension | A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm |
| Measurement accuracy | ±0.3%FS |
| Transmission output | Analog output----4-20mA、1-5v、 0-10mA、0-5V、0-20mA、0-10V |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting；capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load） AC220V/2A(big)DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC12~36V Power consumption≤3W |
| Use environment | Operating temperature（-10~50℃）No condensation, no icing |
-
Introduction

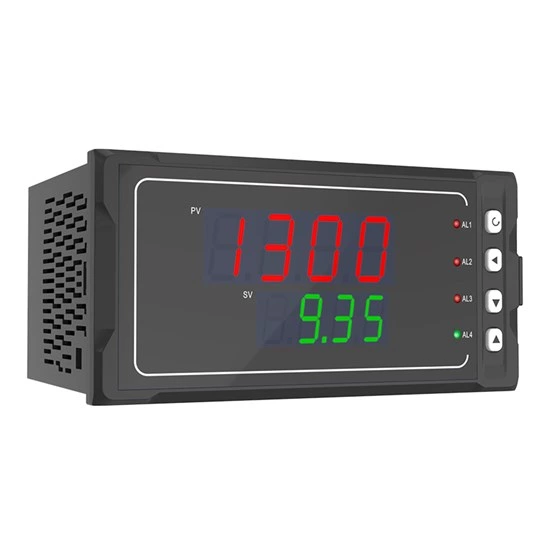

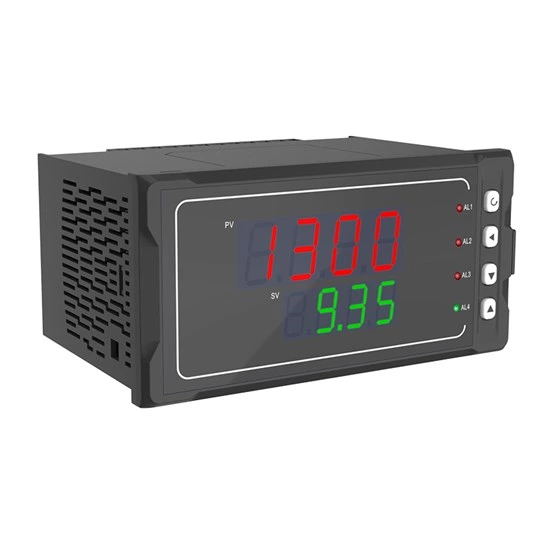

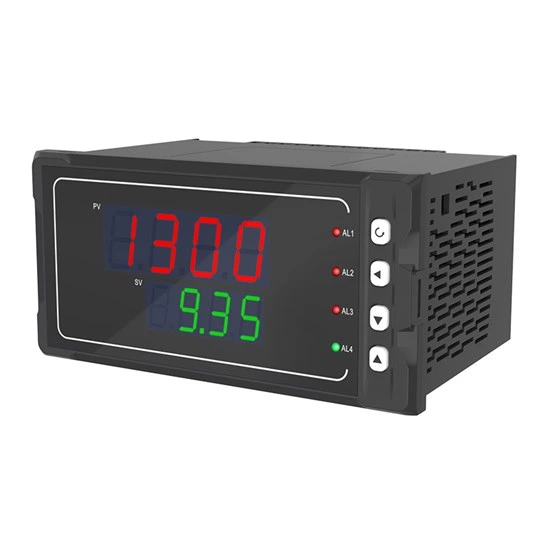

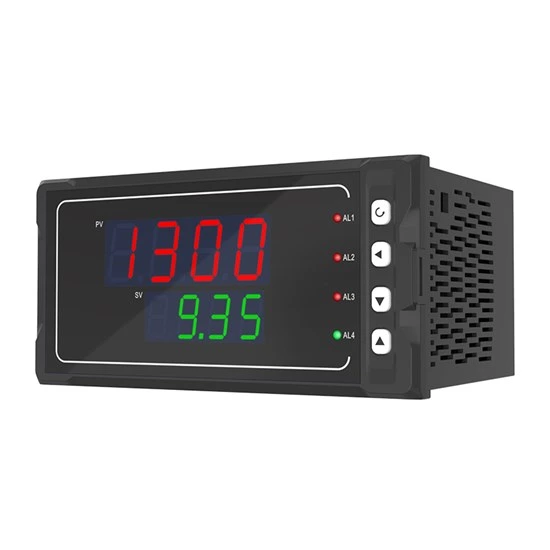

The SIN-1300 series easy fuzzy PID regulator adopts a fuzzy PID control algorithm for simple setup and stable operation, offering a measurement accuracy of up to 0.3%. It is available in seven enclosure sizes and supports up to 33 input signal types, making it suitable for measuring and controlling industrial process variables such as temperature, pressure, flow, level, and humidity. When combined with various actuators, it enables PID regulation of electric heating equipment, solenoid valves, and motorized control valves. The controller supports two alarm outputs, one control output or an RS485 communication interface using the standard MODBUS protocol, as well as one DC 24 V auxiliary power output. Photoelectric isolation is applied between the input, output, and power terminals. It supports 100–240 V AC/DC or 20–29 V DC switching power supplies, features standard snap-in installation, and operates reliably at ambient temperatures of 0–50 ℃ with relative humidity of 5–85% RH (non-condensing).

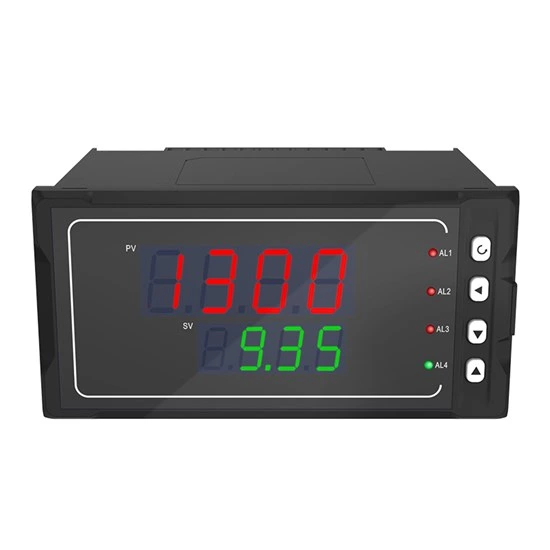

Profile of Display Panel
(1) PV Display (measured value)
(2) SV Display
Display parameters like input type in measurement mode;
Display setting value in parameters setting mode;
(3) Primary alarm (AL1) and secondary alarm indication lamp, running lamp (RUN) and output lamp (OUT);
(4) Confirmation
(5) Shift
(6) Decrease
(7) Increase
How to get the core out of shell:
The core of instrument can be taken out from the shell. Push buckles on both sides of the front panel aside, and push the front panel to separate core and shell. For installation, put the core into the shell and lock it with buckles to meet protection standard.
High brightness display
Dual-screen three-digit LED digital display PC mask
High transparency, smooth surface
Good aging resistance
Touch button
Use high-quality silicone buttons
Sensitive operation and long service life
Good touch and good recovery
Ventilation and heat dissipation
Open holes on both sides, convection ventilation to ensure long-term high temperature operation of the instrument
Limit cover protection
Wiring diagram----to ensure correct wiring
Wiring cover --- to ensure wiring safety
Embedded installation
Dial hole, standard size
Fastened by buckle, easy to install
