Introduction

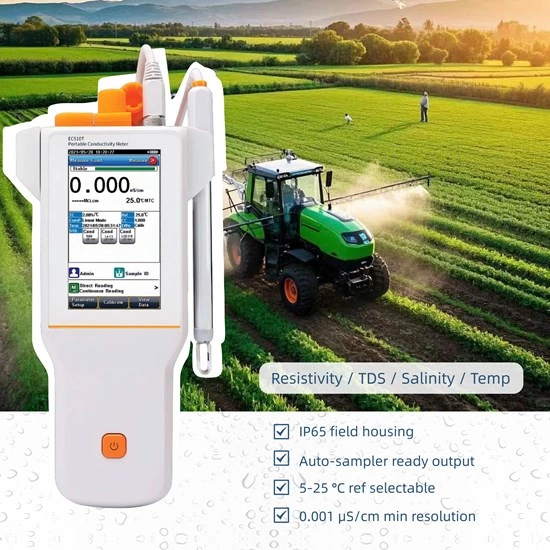

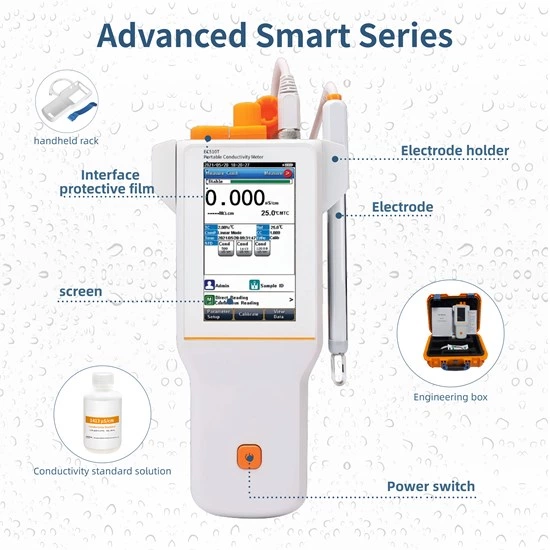

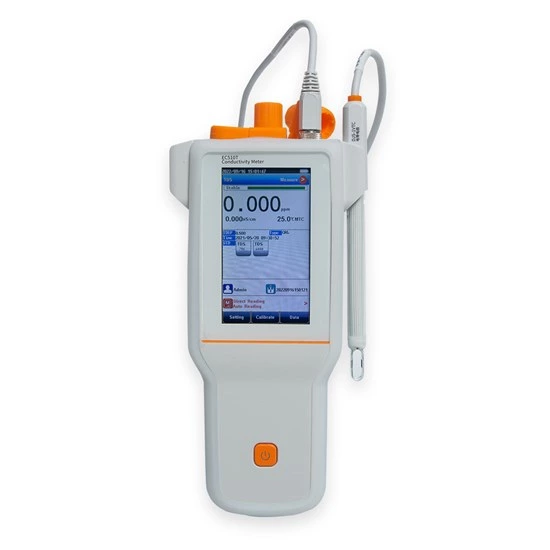

This portable high-precision meter features a 4.3-inch high-contrast LCD touchscreen and an intelligent operating system for managing users, calibration, electrodes, methods, and data. It supports automatic, timed, and continuous reading modes, with both automatic and manual temperature compensation for accurate measurements. The auto-hold function locks endpoint readings for reliability, while GLP-compliant storage of up to 1,000 data sets allows for review and analysis. With USB connectivity, IP65 waterproofing, automatic calibration recognition, and configurable parameters, this meter is ideal for laboratory and outdoor field measurements.
-
Specification
| Model | EC510T | |
| Parameters | EC/Resistivity/TDS /Sal./Temp | |
| Conductivity | Range | 0.000 μ S/cm to 3000 mS/cm |
| Resolution | 0.001 μ S/cm minimum, various with range selection |
|
| Accuracy | ± 0.5% FS | |
| Reference Temperature | 5, 10, 15, 18, 20, 25 ºC | |
| Resistivity | Range | 5.00 Ω ·cm~100.0 M Ω ·cm |
| Resolution | 0.01 Ω ·cm minimum | |
| Accuracy | ± 0.5% FS | |
| TDS | Range | 0.000ppm~1000ppt |
| Resolution | 0.001mg/L minimum, changed with range | |
| Accuracy | ± 0.5% FS | |
| Salinity | Range | 0.0 ～ 80.0 ppt |
| Resolution | 0.1ppt | |
| Accuracy | ± 1ppt | |
| Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
| Outputs | USB | USB 2.0 flash memory device, PC, scanner |
| Bluetooth | Yes | |
| Temperature Range | -10 to 135 ºC, 14 to 275 ºF | |
| Data Storage | 1000 Groups | |
| Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output | |
| IP Rating | IP65 | |
| Dimensions | 90 × 255 × 40 mm | |
| Weight | 500g (1.1 lb) | |
-

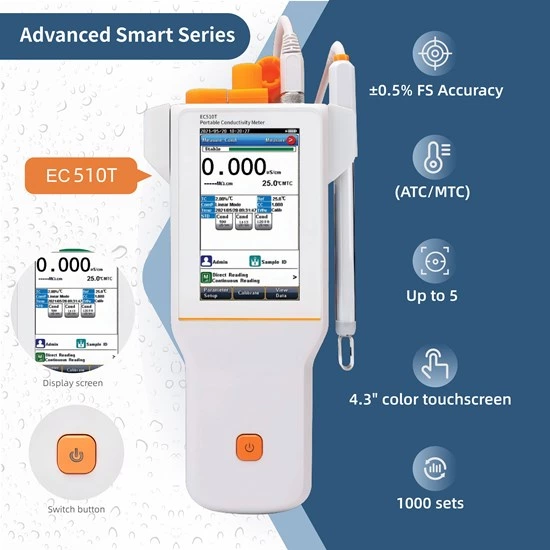

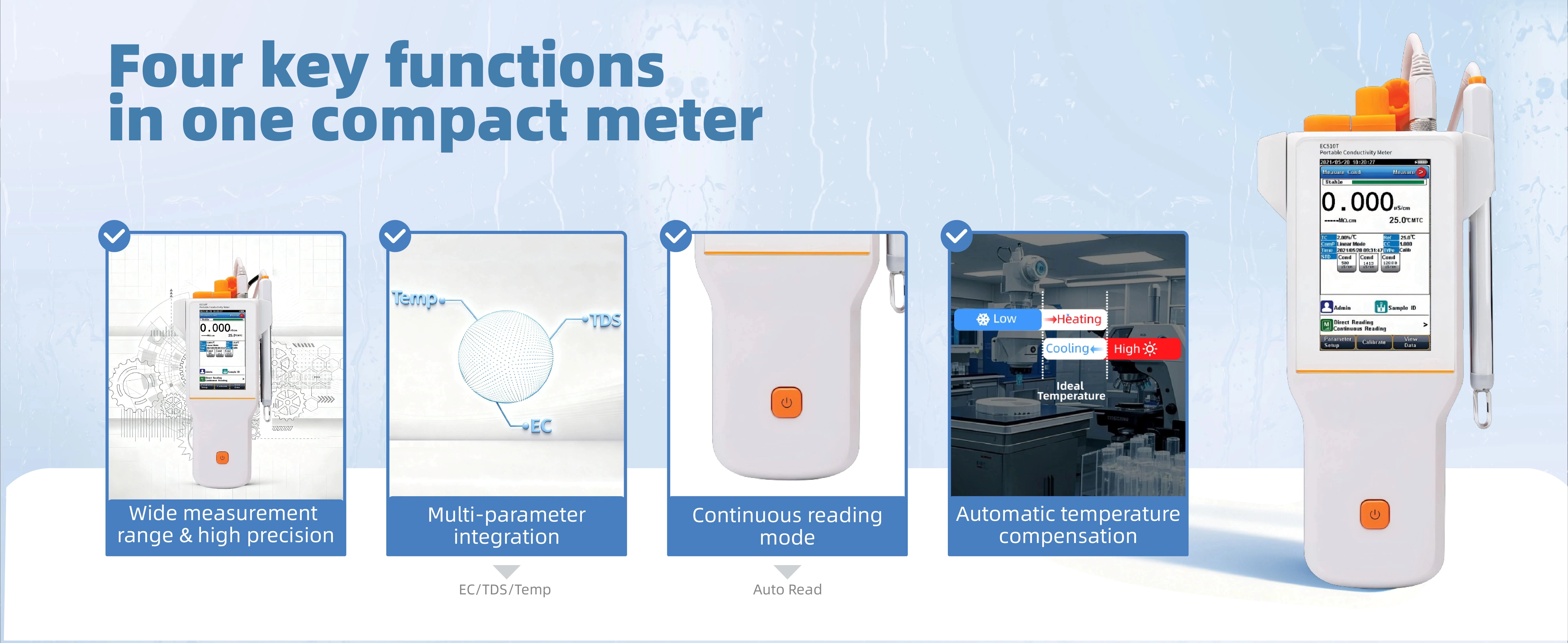

FEATURES
- Display: Color high contrast LCD touchscreen, 4.3 inches.
- System: Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management, etc.
- Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
- Compensation: Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold: Auto-hold feature senses and locks the measurement endpoint.
- Storage: Data storage 1000 sets for each parameter (GLP-compliant).
- Analysis: Data analysis feature helps user review, compare, and recalculate results.
- Communication: Support for USB communication.
- Power: Auto-power off feature effectively extends the battery service life.
- Reset: Reset feature automatically resumes all settings back to factory default options.

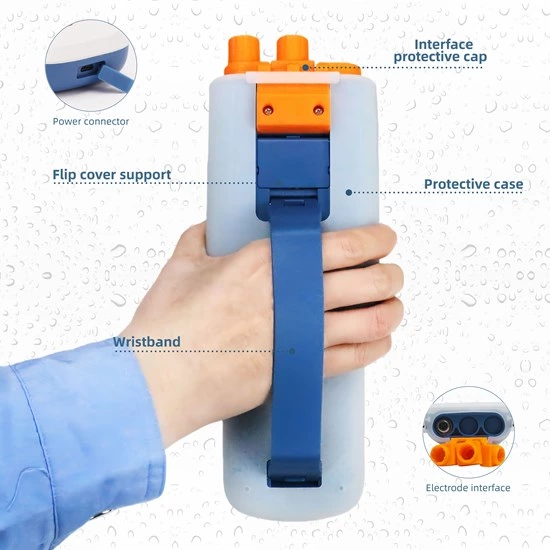

- Protection: IP65 waterproof. The portable meter is suitable for field measurements and outdoor measurements.
- Calibration: 1–5 points calibration automatically recognizes the standard solutions.
- Settings: Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient, and TDS factor.
- Type: Temperature compensation type (none, linear, pure water).
