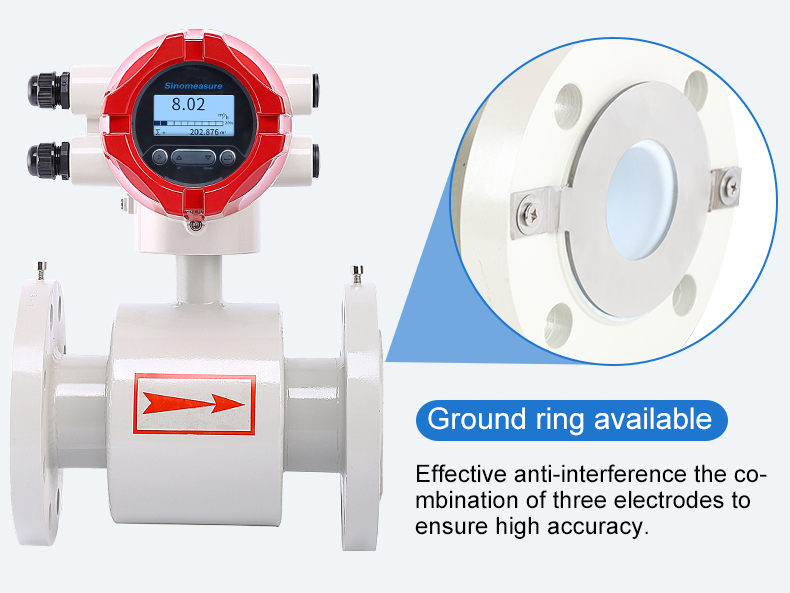

| Product | Electromagnetic flowmeter |
| Model | SUP-LDG |
| Diameter nominal | DN15~DN1200 |
| Nominal pressure | DN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized |
| Accuracy | ±0.5% F.S. (Flow speed > 1m/s); ±0.5% F. S. ±2mm/s (Flow speed <1m/s) |
| Liner material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
| Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Medium temperature | Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃ |
| Power supply | 85-245VAC，50/60Hz, 22VDC-26VDC |
| Electrical conductivity | Water min.20μS/cm;other medium min.5μS/cm |
| Structure type | Compact type, Remote type |
| Ingress protection | IP65 for converter, IP68 for sensor |
| Product standard | JB/T 9248-1999 Electromagnetic Flow Meter |
- Introduction
SIN-LDG Remote Type electromagnetic flowmeter is applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer. It can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.
- Application
Electromagnetic flow meters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc.
