Sanitary electromagnetic flowmeter for food processing

Accuracy:  ±0.5%,±2mm/s(flowrate<1m/s)

Electric conductivity:  Water: Min. 20μS/cm

                                                Other liquid: Min. 5μS/cm

Flange: ANSI/JIS/DIN DN10…600

Ingress protection: IP65

SS electromagnetic flowmeter
SS electromagnetic flowmeter Stainless steel body electromagnetic flowmeter SS flowmeter SS magnetic flowmeter
Compact type Remote type Sanitary type Plug-in type
Media Conductivity fluid Conductivity fluid Conductivity fluid
Nominal diameter DN10-DN2000 DN100-DN1000 DN10-DN100
Nominal pressure 4.0MPA; 1.6 MPA 4.0MPA; 1.6 MPA 4.0MPA; 1.6 MPA
Accuracy ±0.5% ±0.5% ±0.5%
Body material Carbon Steel; SS316L Carbon Steel; SS316L Carbon Steel; SS316L
Electrode Material 316L, HB/HC, Ti, Ta, Tungsten carbide 316L, HB/HC, Ti, Ta, Tungsten carbide 316L, HB/HC, Ti, Ta, Tungsten carbide
Signal output 4-20mA, Pulse 4-20mA, Pulse 4-20mA, Pulse
Communication RS485; Hart; Profibus RS485; Hart; Profibus RS485; Hart; Profibus
Power supply 220VAC; 24VDC 220VAC; 24VDC 220VAC; 24VDC
Ingress protection IP65 IP68 IP65
Installation Flange; Clamp Flange; Clamp Clamp
  • Introduction

SIN-LDGS sanitary electromagnetic flowmeter is applicable for all food grade conductive liquid measure, such as drinking water, food processing, pharmaceutical industry and many others. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer.

sanitary magnetic flow meter Sinomeasure

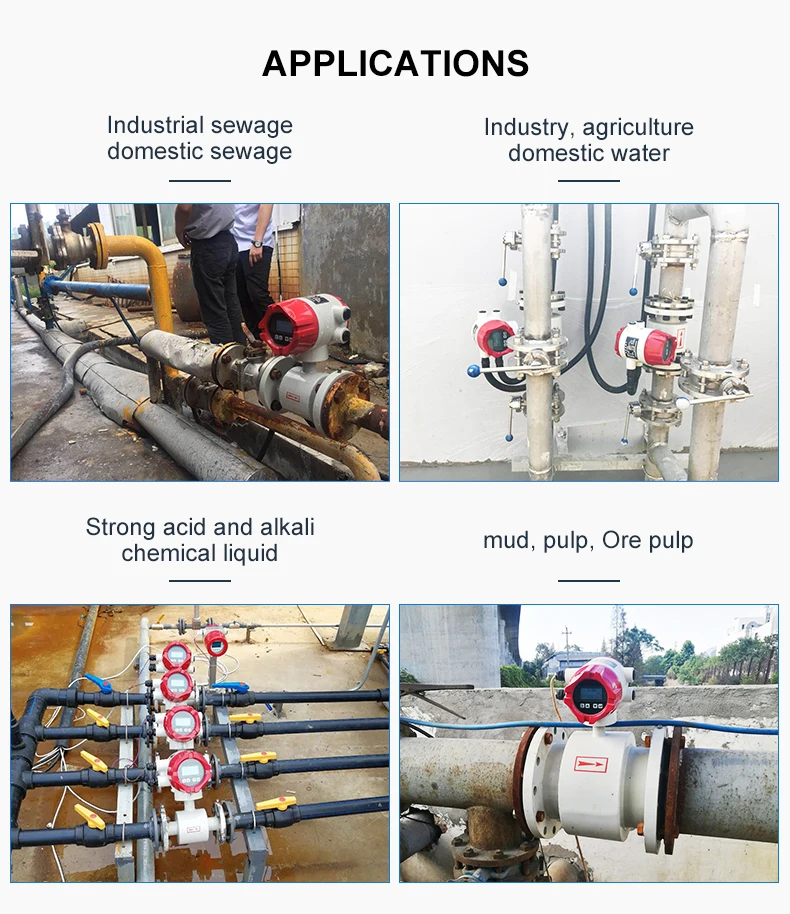

  • Application

Electromagnetic flow meters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc.

magnetic flow meter manufacturers


  • Description

Sino-measure flow meters

electromagnetic flow meter supplier


Automatic calibration line

magnetic flowmeter calibration

mt flowmeter calibrate
