Specification
| Product | Sanitary type electromagnetic flowmeter (magnetic flow meter) |
|---|---|
| Model | SIN-LDGS |
| Diameter nominal | DN15~DN100 |
| Nominal pressure | 0.6~4.0MPa |
| Accuracy | ±0.5%，±2mm/s(flowrate<1m/s) |
| Repetitiveness | 0.2% |
| Liner material | PFA, F46, Neoprene, PTFE, FEP |
| Electrode material | Stainless steel SUS316L, Hastelloy C, Titanium, |
| Tantalum, Platinum-iridium | |
| Medium temperature | Integral type: -10℃~80℃ |
| Split type: -25℃~180℃ | |
| Ambient temperature | -10℃~55℃ |
| Power supply | 100-240VAC，50/60Hz / 22VDC—26VDC |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |
| Ingress protection | IP65, IP68(optional) |
| Product standard | JB/T 9248-2015 |
Introduction

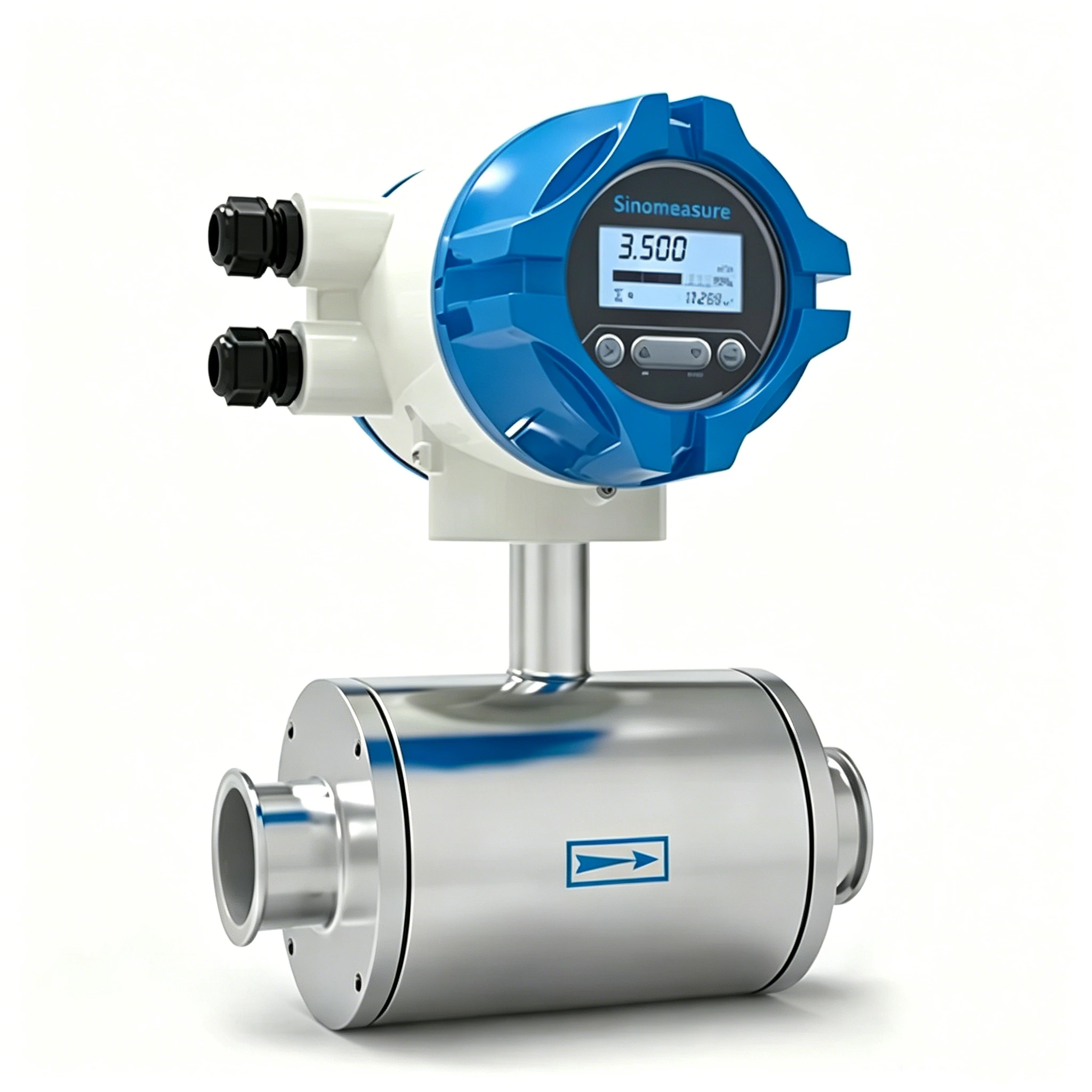

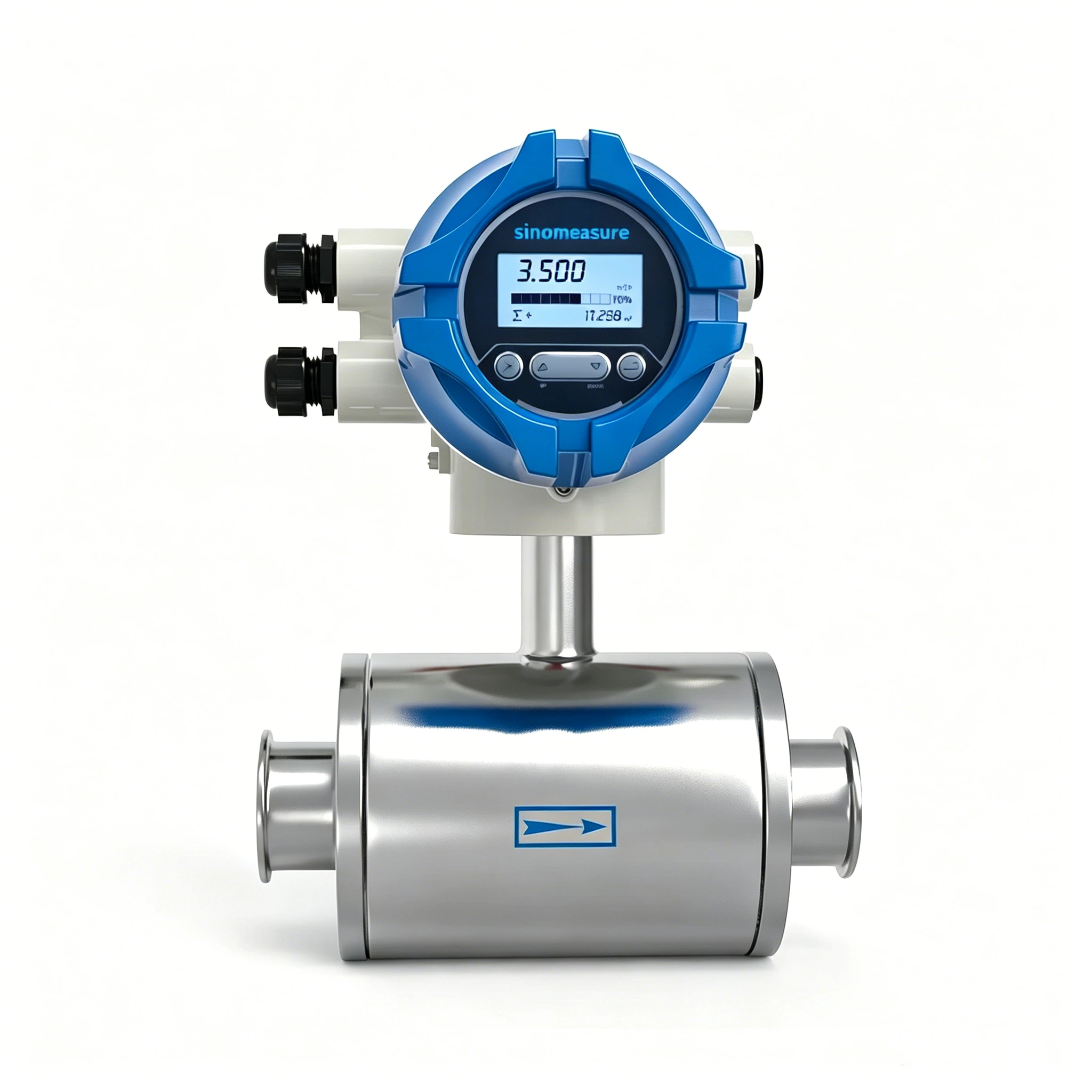

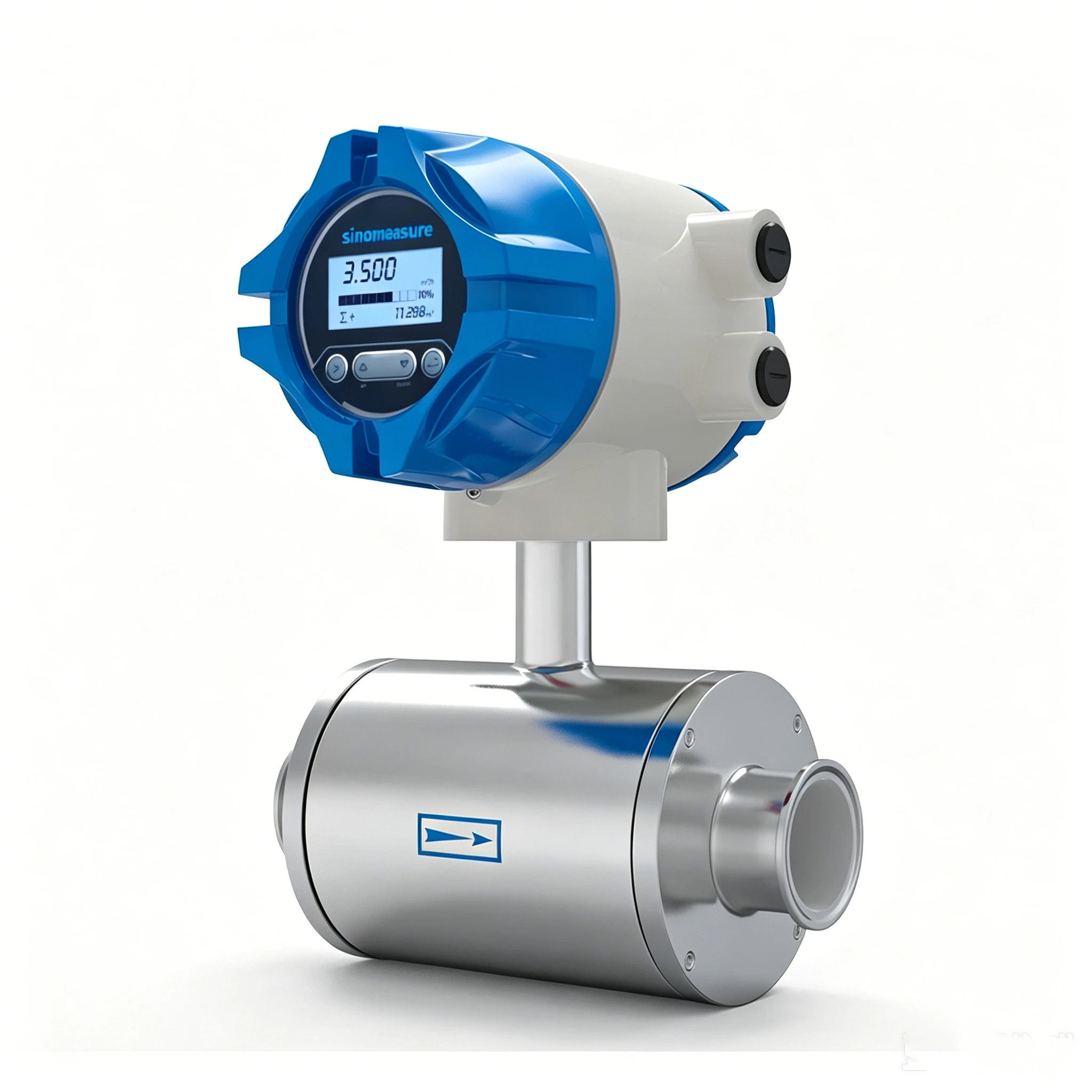

The SIN-LDG sanitary electromagnetic flow meter is suitable for measuring all food-grade conductive liquids, such as those used in drinking water, food processing, and pharmaceutical industries. Typical applications include accurate monitoring, metering, and trade transfer of liquid flow.
One of the main advantages of the SIN-LDG sanitary electromagnetic flow meter is its ability to accurately measure liquid flow across a wide range of temperatures and viscosities. This makes it ideal for food processing applications, especially for measuring foods whose temperature or viscosity may change.
The SIN-LDG sanitary electromagnetic flow meter is designed with hygiene in mind; its smooth, seamless structure effectively avoids the risk of bacterial growth. This ensures that the measured product remains uncontaminated and makes the flow meter easy to clean and maintain.
Application
Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
