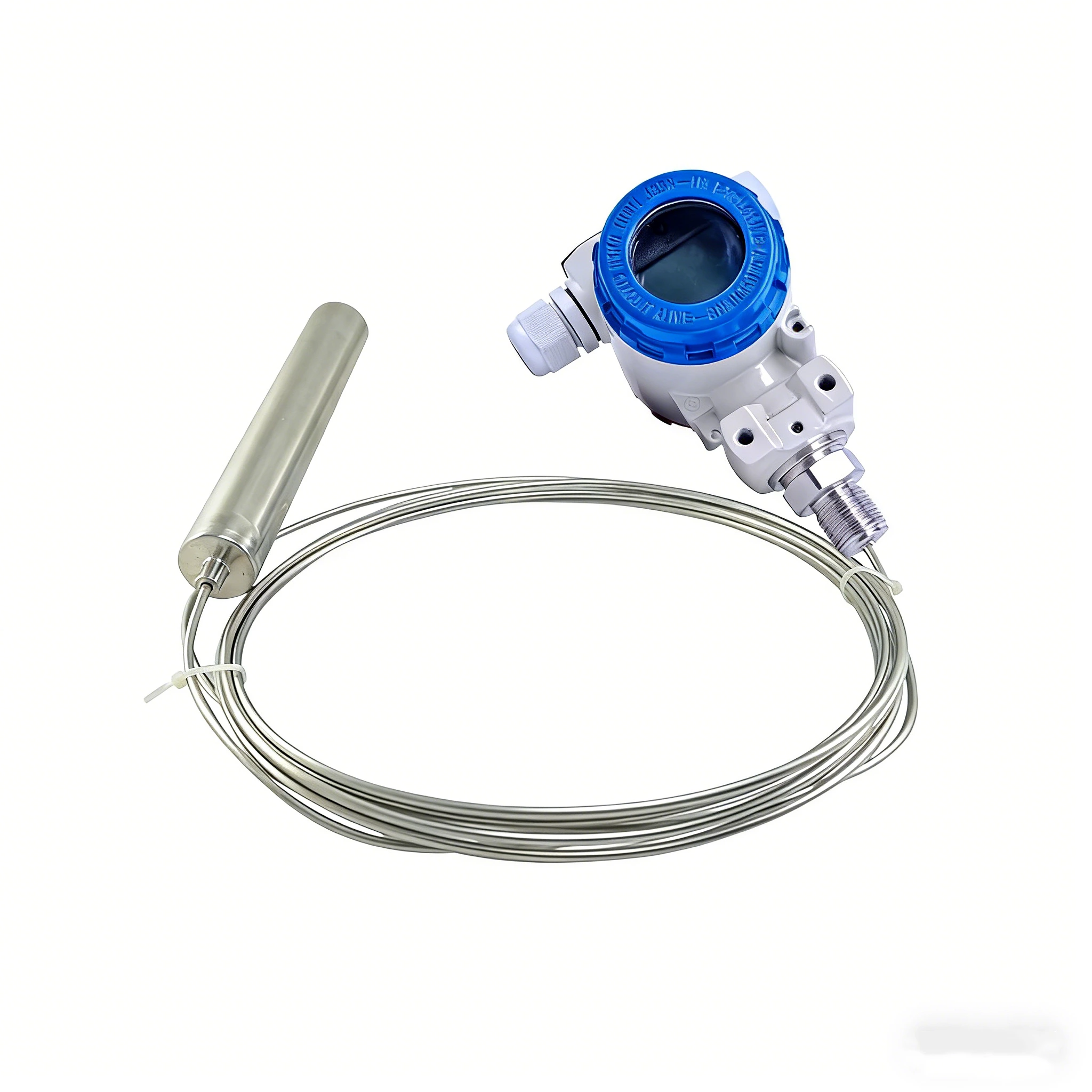

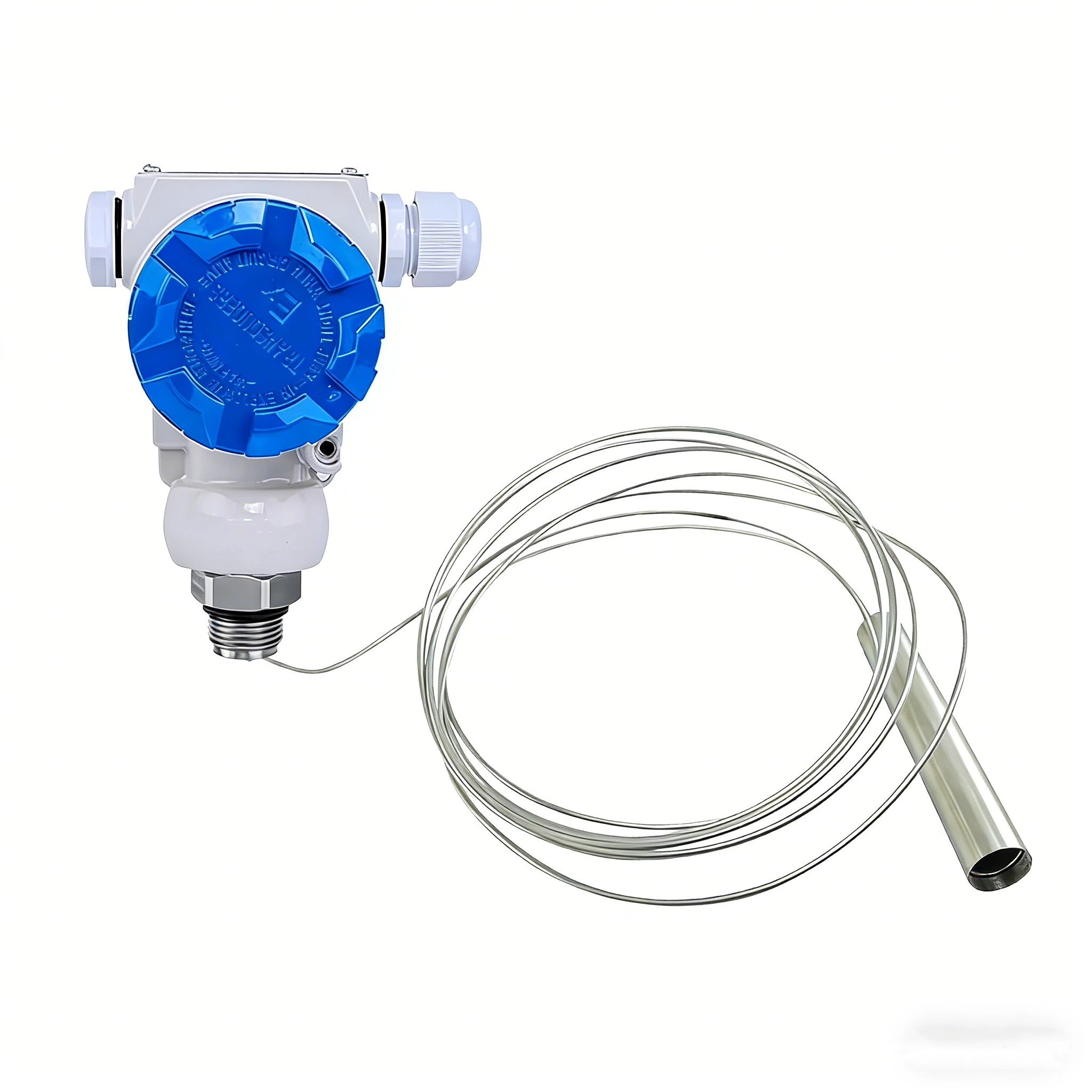

SIN-P260G High temp type submersible level meter

Range: 0 ~ 10m

Resolution: 0.5% F.S

Medium temp.: -40℃~200℃

Output signal: 4~20mA

Power supply: 24VDC

  • Introduction

 Product  Level transmitter
 Model SIN-P260G
 Measure range 0m~ 1m···10m
 Indication resolution 0.5%
 Compensated temperature 0℃~60℃
 Operation temperature -20℃~85℃
 Medium temperature -40℃~200℃
 Storage temperature -40℃~125℃
 Output signal 4-20mA;0~5V;0~10V
 Pressure overload 300%FS
 Stability ±0.2%FS/year
 Response time ≤10ms(rise to 90%FS)
 ingress protection IP68
 Power supply 4-20mA(18-36V); 4-20mA with display(12~36V) 0-5V,0-10V(12-32V)

Advantages

  • Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shaking on the measurement stability

  • Multiple waterproof and dustproof.

  • The first protective layer: 316L sensor diaphragm, seamless connection, to ensure that the lead and the sensor probe waterproof;

  • Second protective layer: pressure pipe design, to ensure that the protective layer and the lead paste clothes, waterproof, dustproof;

  • Third protective layer: 316L material, seamless connection, to ensure that the lead and the shield seamless connection, confined, nondestructive design;

  • Fourth protective layer: high-quality, sophisticated shielding layer, sophisticated waterproof technology to ensure that no liquid leak detection;

  • Fifth protective layer: 12mm bold high-quality waterproof line, the service life of up to 5 years, long-term immersion in the water is not corrosive, durable, not damaged.
