Introduction

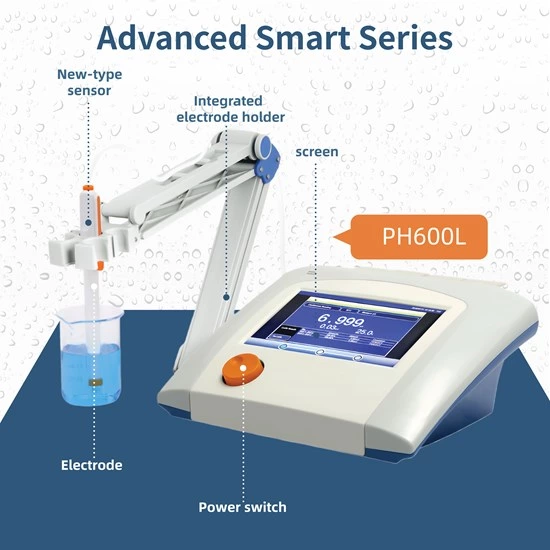

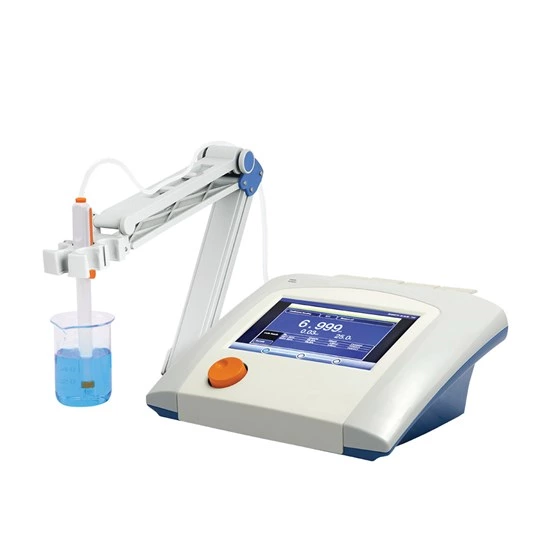

This instrument features a 7.0-inch high-contrast LCD touchscreen and an intelligent operating system for efficient management of users, calibration, methods, and data. It supports multiple reading modes—including auto, timed, and continuous—with automatic or manual temperature compensation for accurate measurements. The device provides GLP-compliant storage of up to 1,000 data sets per parameter and includes data analysis functions for reviewing and recalculating results. It offers 1- to 6-point calibration with automatic standard recognition, selectable pH buffer groups (NIST, DIN, GB), and customizable pH standards, along with automatic electrode diagnostics displaying real-time pH slope and offset. With USB or RS-232 connectivity and IP54 waterproof protection, the instrument delivers reliable performance for both laboratory and routine applications.
-
Specification
| Model | PH600L | |
| Parameters | pH/Temp.(mV/ORP) | |
| pH | Range | -2.000 to 20.000 pH |
| Resolution | 0.1, 0.01, 0.001pH | |
| Accuracy | ±0.002 pH | |
| mV/ORP | Range | -2000.00 to 2000.00 mV |
| Resolution | 0.1, 0.01 mV | |
| Accuracy | ±0.03%FS | |
| Temperature | Range | -5 to 130 ºC |
| Resolution | 0.1 | |
| Accuracy | ±0.1 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |

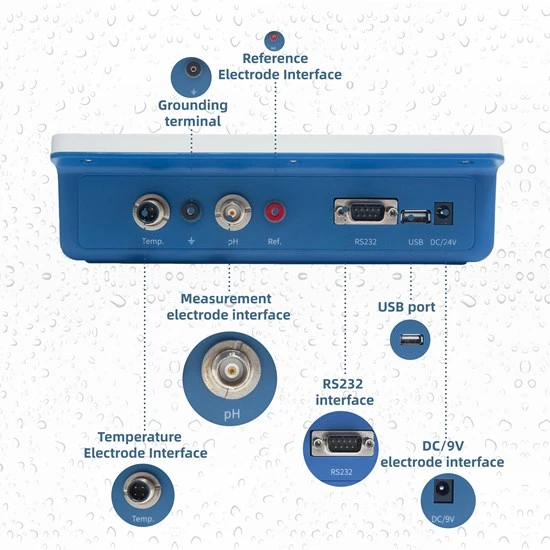

| Inputs | pH Electrode | BNC(Q9) |
| Temp. Probe | 6-pin Mini-DIN | |
| Outputs | USB, RS 232 | USB 2.0 flash memory device, printer, PC |
| Data Storage | 1000 Groups | |
| Power | AC Adapter, 100-240V AC input, DC24V output | |
| IP Rating | IP54 | |
-
FEATURES
- Display: Color high contrast LCD touchscreen, 7.0 inches.
- System: Intelligent operation system provides features including user management, calibration management, method management, data management, etc.
- Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
- Accuracy: Automatic/Manual temperature compensation ensures accurate results.
- Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
- Analysis: Data analysis feature helps users review, compare, and recalculate results.
- Connectivity: Support for USB or RS-232 communication.
- Recovery: Reset feature automatically resumes all settings to factory default options.
- Protection: IP54 waterproof.
- Calibration: 1–6 points calibration with standard recognition.
- Standards: Selectable pH buffer groups, including NIST, DIN, and GB.
- Customization: Support for pH standard group customization.
- Diagnostics: Automatic electrode diagnosis with pH slope and offset display.
