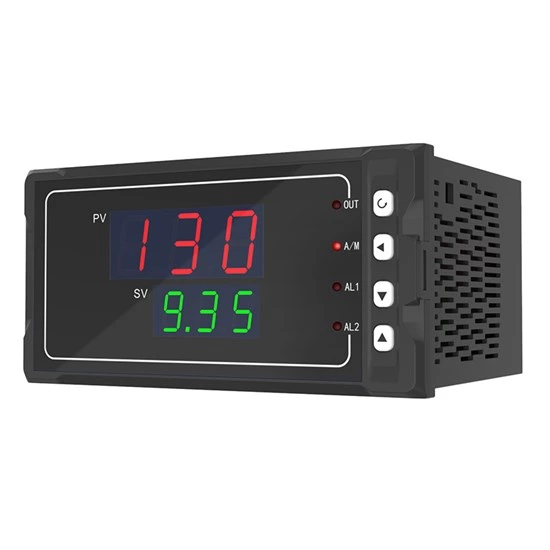

Specification
| Product | Economic 3-digit Display Fuzzy PID Temperature Controller |
| Model | SIN-130T |
| Dimension | C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm |
| Measurement accuracy | ±0.3%FS |
| Transmission output | Analog output----4-20mA(RL≤500Ω)、1-5v（RL≥250kΩ） |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting；Relay contact capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load） AC220V/2A(big)DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (AC/50-60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature（-10~50℃）No condensation, no icing |
-
Introduction
This economic 3-digit display fuzzy PID temperature controller features a modular design for easy operation and high cost efficiency. It is suitable for temperature measurement and control within the range of 0–999 °C, and is widely used in light industrial machinery, ovens, laboratory equipment, and heating or cooling systems. The controller uses a dual-row 3-digit LED display and supports multiple RTD and thermocouple input types with an accuracy of up to 0.3%. Five enclosure sizes are available, with support for two alarm outputs and either analog or switch control output, enabling precise and stable temperature control without overshoot. Optical isolation is applied to the input, output, and power terminals. The unit supports 100–240 V AC/DC or 12–36 V DC switching power supplies, features standard snap-in installation, and operates reliably at ambient temperatures of 0–50 °C with relative humidity of 5–85% RH (non-condensing).
Terminal Assignments and Dimensions

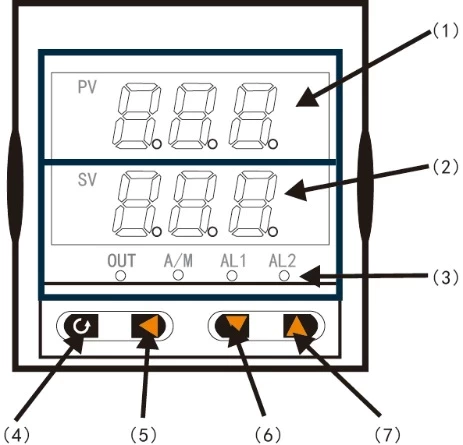

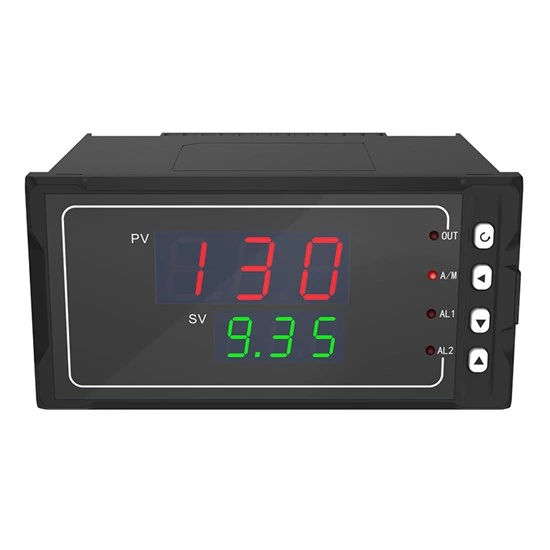

(1) PV display window (measured value)
(2) SV display window
In measurement state, it displays the control target value;
In parameters setting state, it displays the setpoint.
(3) The first alarm (AL1) and the second alarm (AL2) indicators, manual light (A/M) and output light (OUT)
(4) Confirm key
(5) Shift key
(6) Down key
(7) Up key

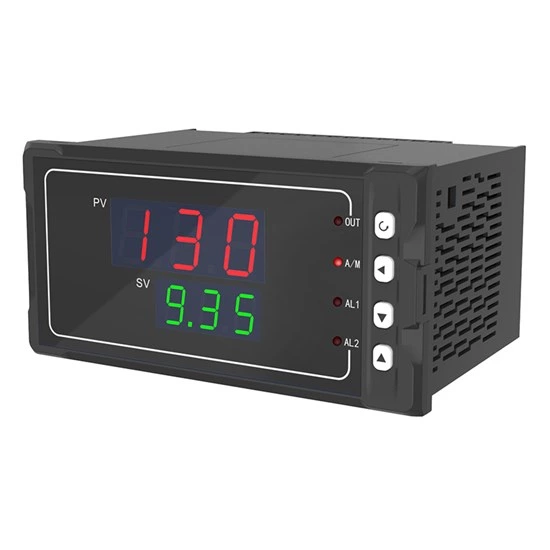

Touch button
Use high-quality silicone buttons
Sensitive operation and long service life
Good touch and good recovery

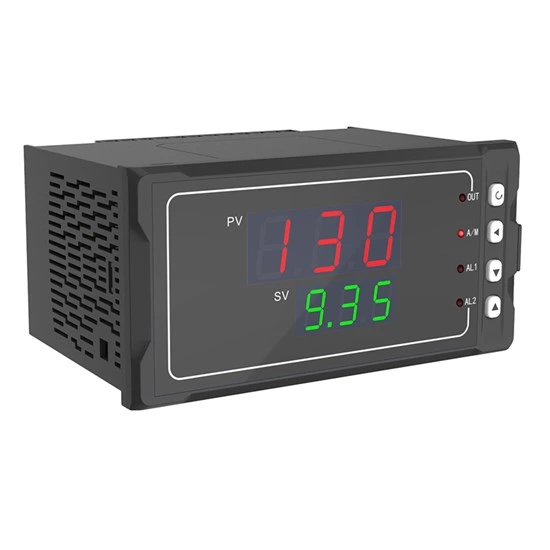

Ventilation and heat dissipation
Open holes on both sides, convection ventilation to ensure long-term high temperature operation of the instrument
Limit cover protection
Wiring diagram----to ensure correct wiring
Wiring cover --- to ensure wiring safety

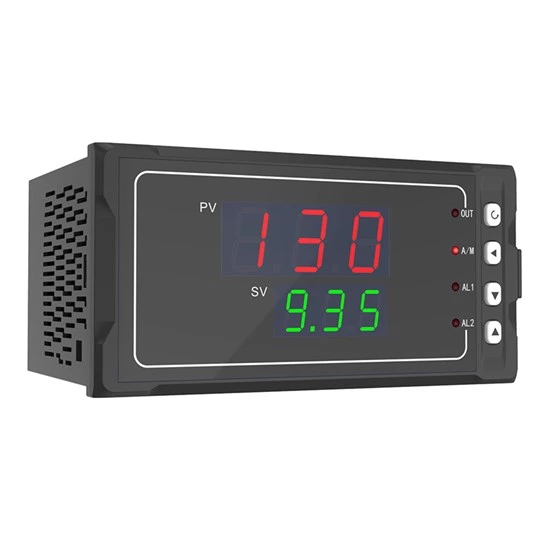

Embedded installation
Dial hole, standard size
Fastened by buckle, easy to install
