Specification

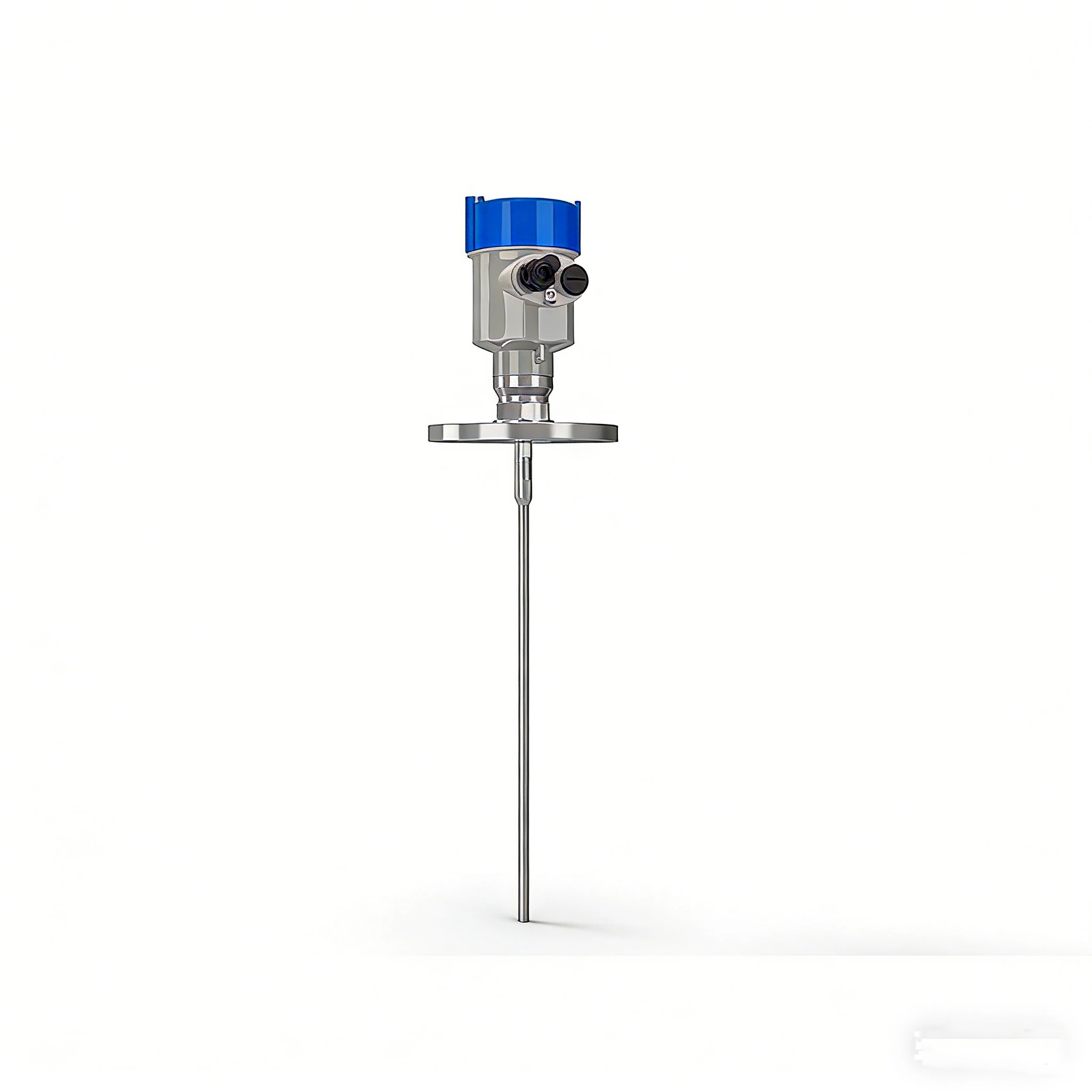

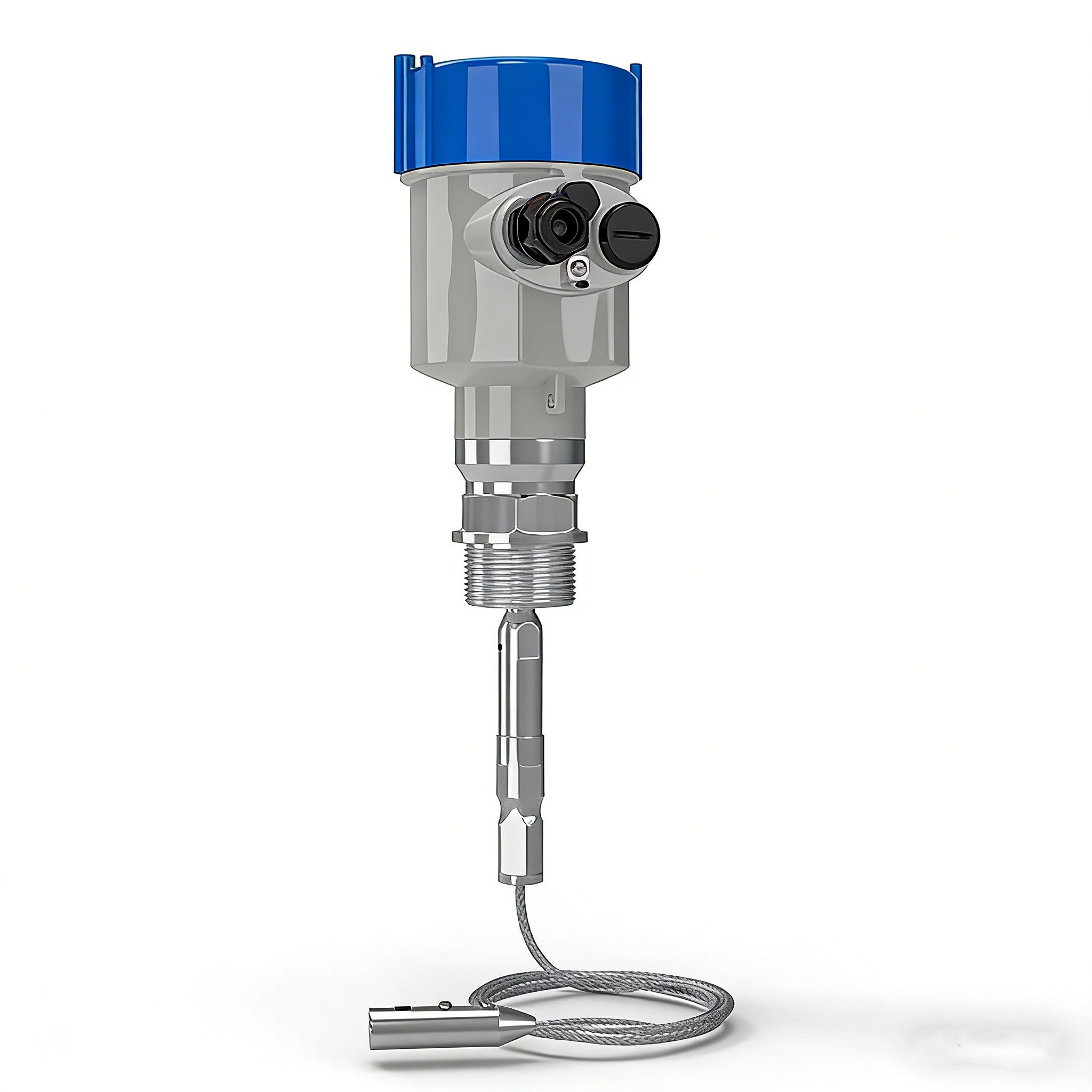

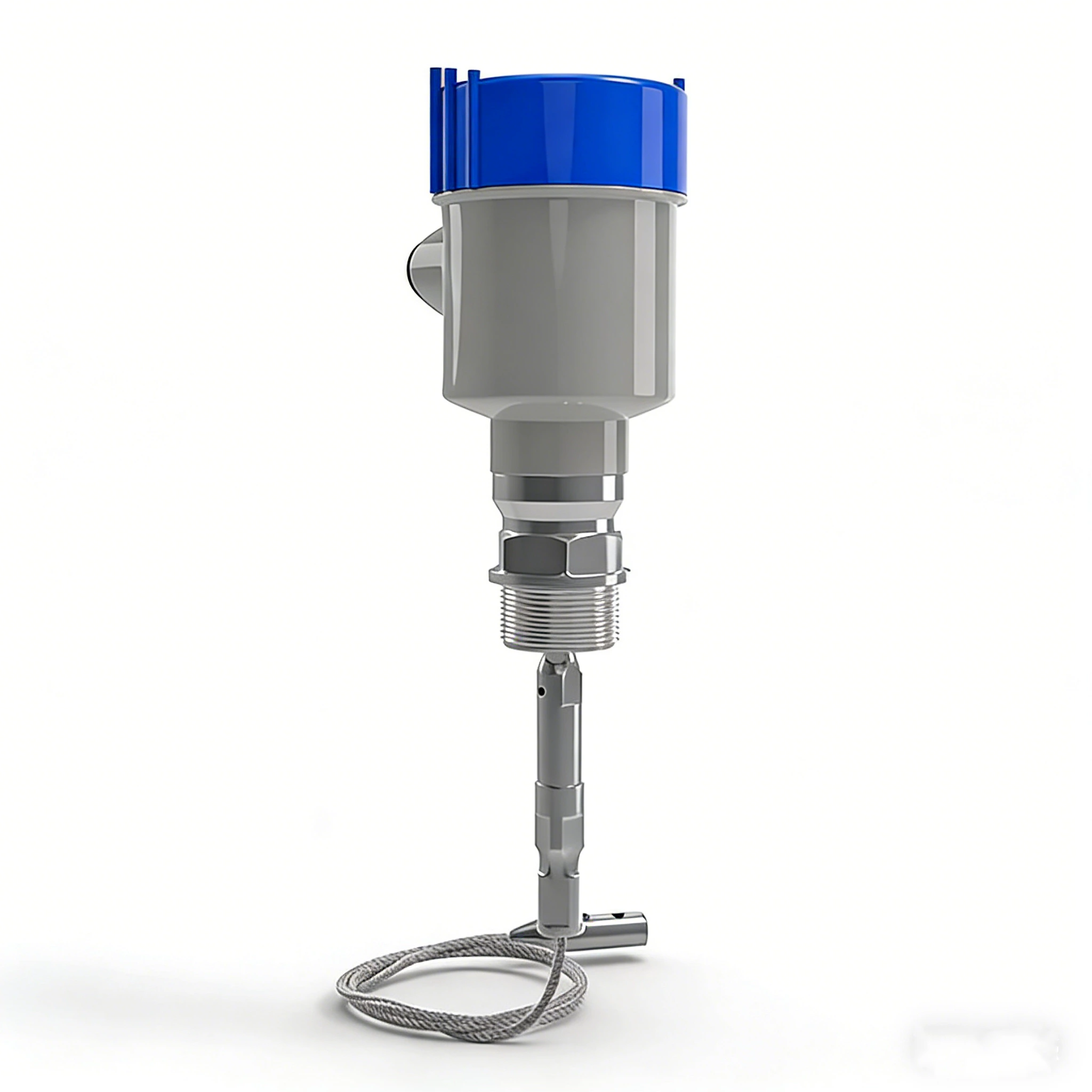

| Product | Guided wave radar level meter |
| Model | SIN-RD701 |
| Measure range | 0-30 meters |
| Application | Liquids and bulk solids |
| Process connection | Thread/ Flange(optional) |
| Process temperature | (-40~250)℃ |
| Process pressure | -0.1 ~ 4MPa |
| Accuracy | ±5mm~±25mm |
| Ingress protection | IP67 |
| Frequency range | 500MHz-1.8GHz |
| Signal output | 4-20mA/HART |
| RS485/Modbus | |
| Power supply | 24VDC/ Two-wire (24VDC/220VAC)/ Four-wire |
- Installation guide
H----Measuring range
L----Empty tank height
B----Blind area
E----Minimum distance from probe to tank wall >50mm
Note:
The top Blind area refers to the minimum distance between the highest material surface of the material and the measurement reference point.
Blind area at the bottom refers to a distance that cannot be accurately measured near the bottom of the cable.
The effective measurement distance is between the top Blind area and the bottom Blind area.
