Specification
| Product | Guided wave radar level meter |

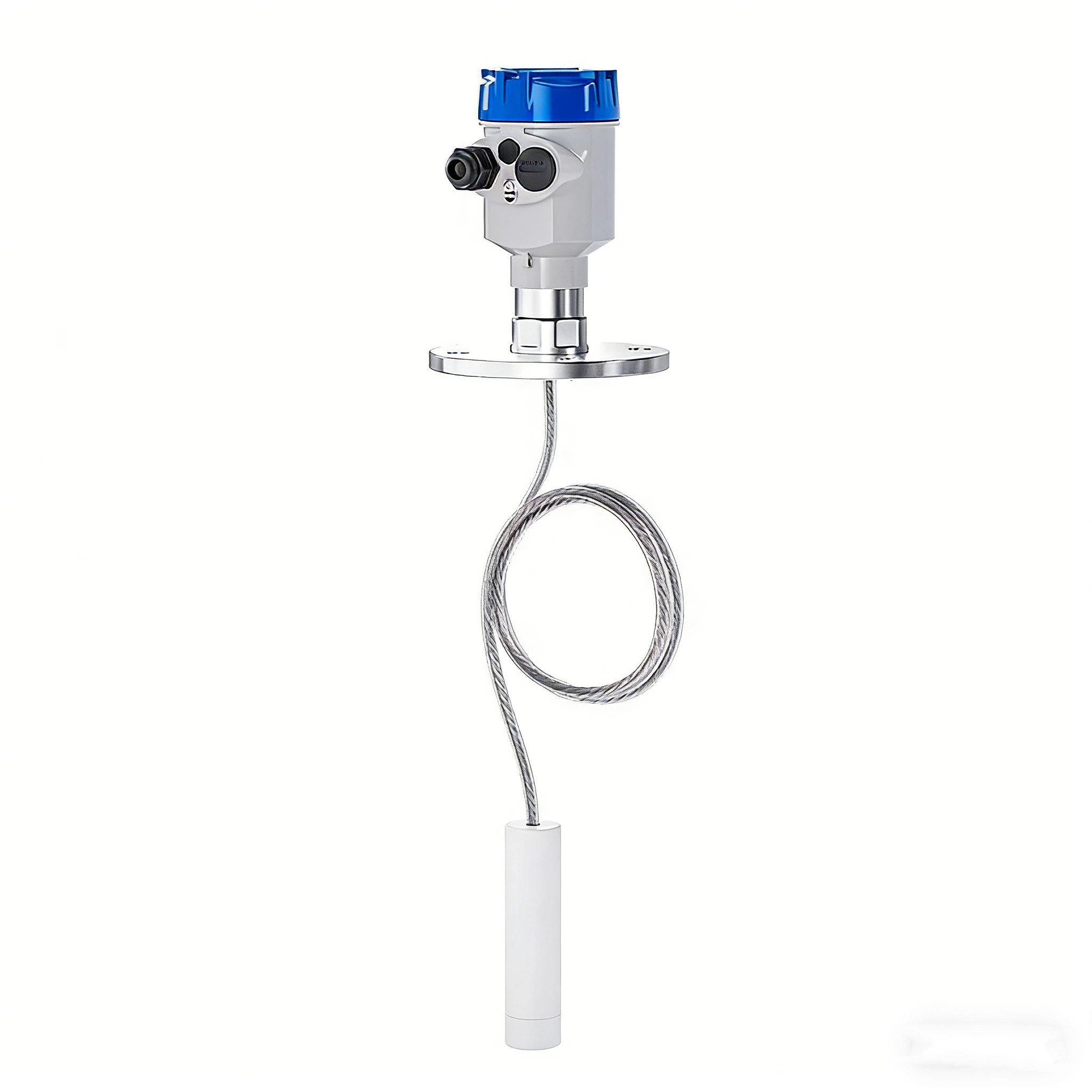

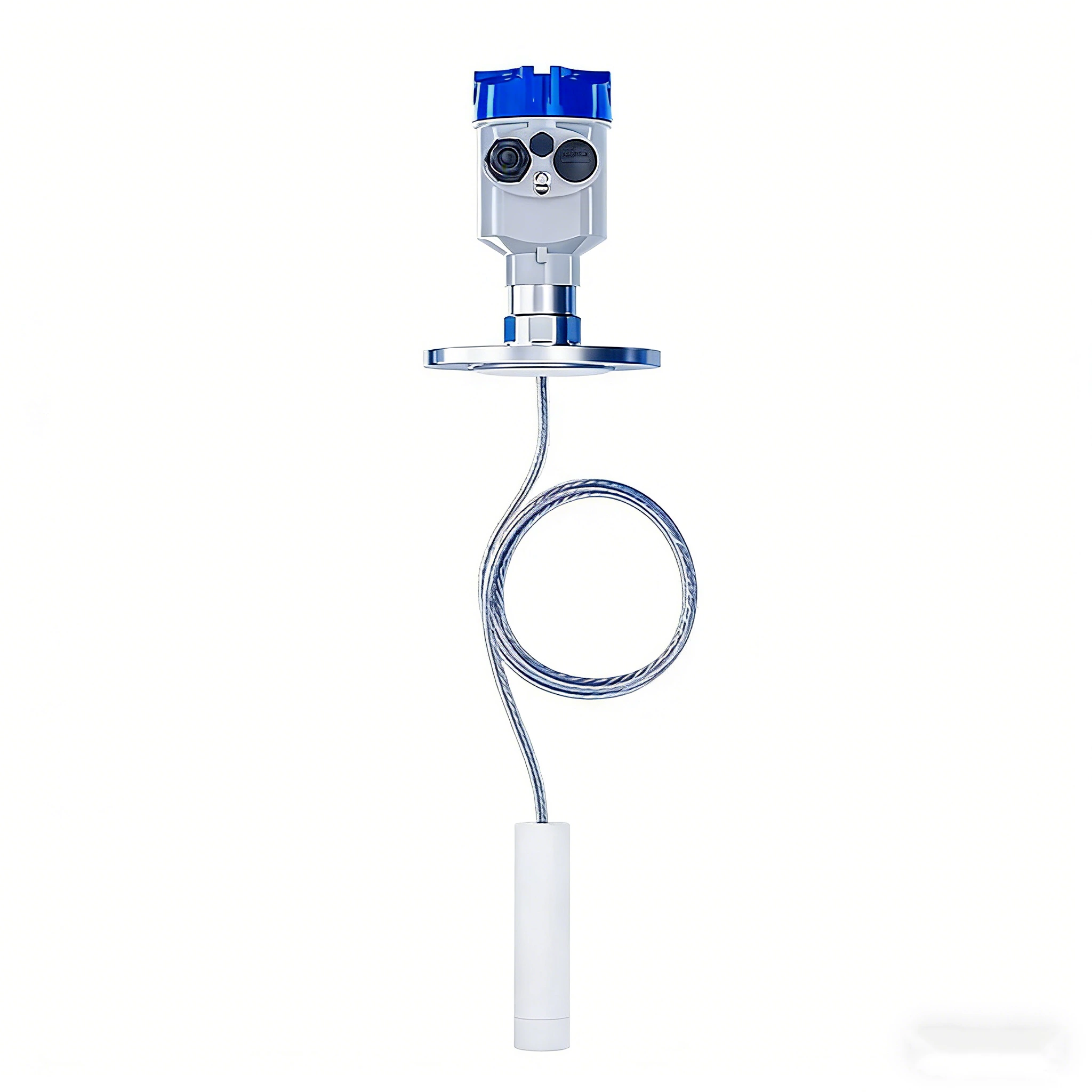

| Model | SIN-RD702 |
| Measure range | 0-20 meters |
| Application | Acids, bases or other corrosive media |
| Process connection | Thread/Flange(optional) |
| Medium temperature | -40℃~+200℃ |
| Process pressure | (-0.1~+4) MPa |
| Accuracy | ±10mm |
| Ingress protection | IP67 |
| Frequency range | 500MHz~1.8GHz |
| Signal output | (4~20)mA/HART |
| RS485/Modbus | |
| Power supply | (24VDC)/ Two-wire (24VDC/220VAC) / Four-wire |
-
Introduction
SIN-RD702 guide wave radar level meter can launch high frequency micro-waves which transmits along with probe.
-
Installation guide
H----Measuring range
L----Empty tank height
B----Blind area
E----Minimum distance from probe to tank wall >50mm
Note:
The top Blind area refers to the minimum distance between the highest material surface of the material and the measurement reference point.
Blind area at the bottom refers to a distance that cannot be accurately measured near the bottom of the cable.
The effective measurement distance is between the top Blind area and the bottom Blind area.
