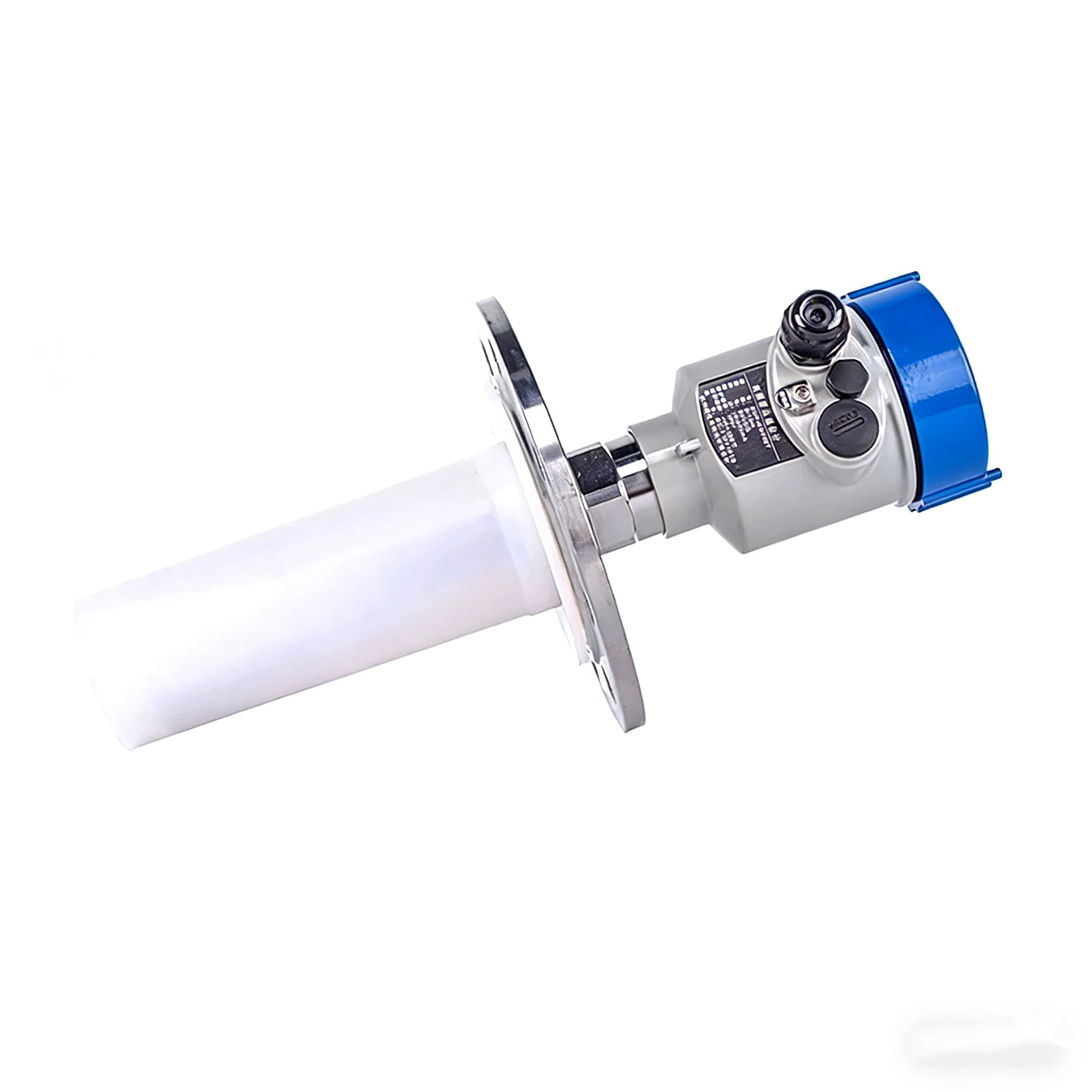

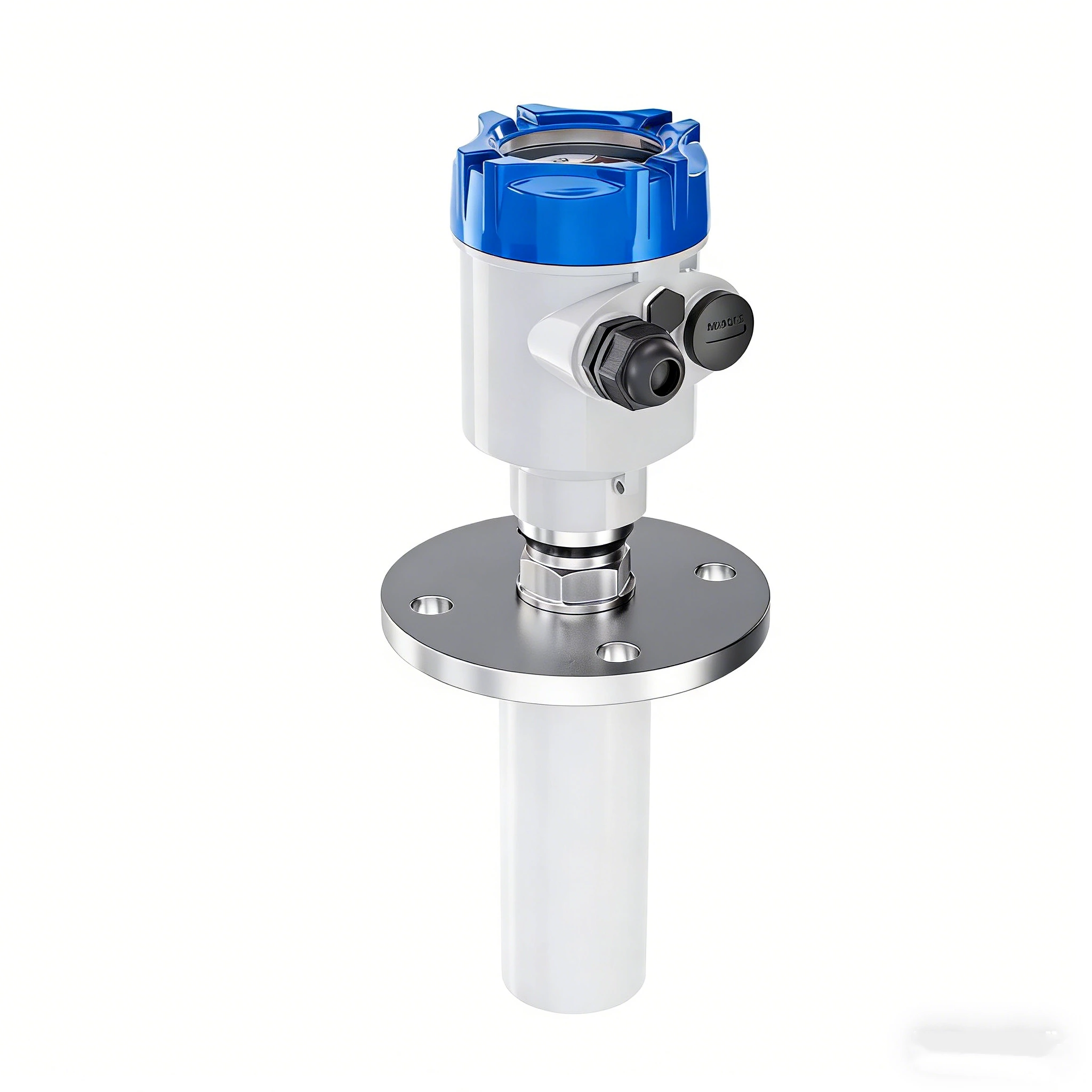

SIN-RD902T 26GHz Radar level meter

Range: 0~20 m
Accuracy: ±3mm
Application:  Liquid
Frequency Range: 26GHz
  • Specification

 Product  Radar level meter
 Model SIN-RD902T
 Measure range 0-20 meters
 Application Liquid
 Process connection Thread, Flange
 Medium temperature -40℃~130℃(Standard type), -40℃~230℃(High temp type)
 Process pressure    -0.1~2.0MPa
 Accuracy ±10mm
 Ingress protection  IP67
 Frequency range 26GHz
 Signal output 4-20mA
RS485/Modbus
 Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
  • Introduction

 SIN-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

Radar Level Indicator is a device that uses radar waves to measure the distance and level of liquids, solids or slurries in tanks, silos or other containers. It is a non-contact, reliable and accurate method of level measurement that works under various process conditions. Radar Level Indicator can be used for applications such as custody transfer, inventory management, overfill prevention and loss control.
