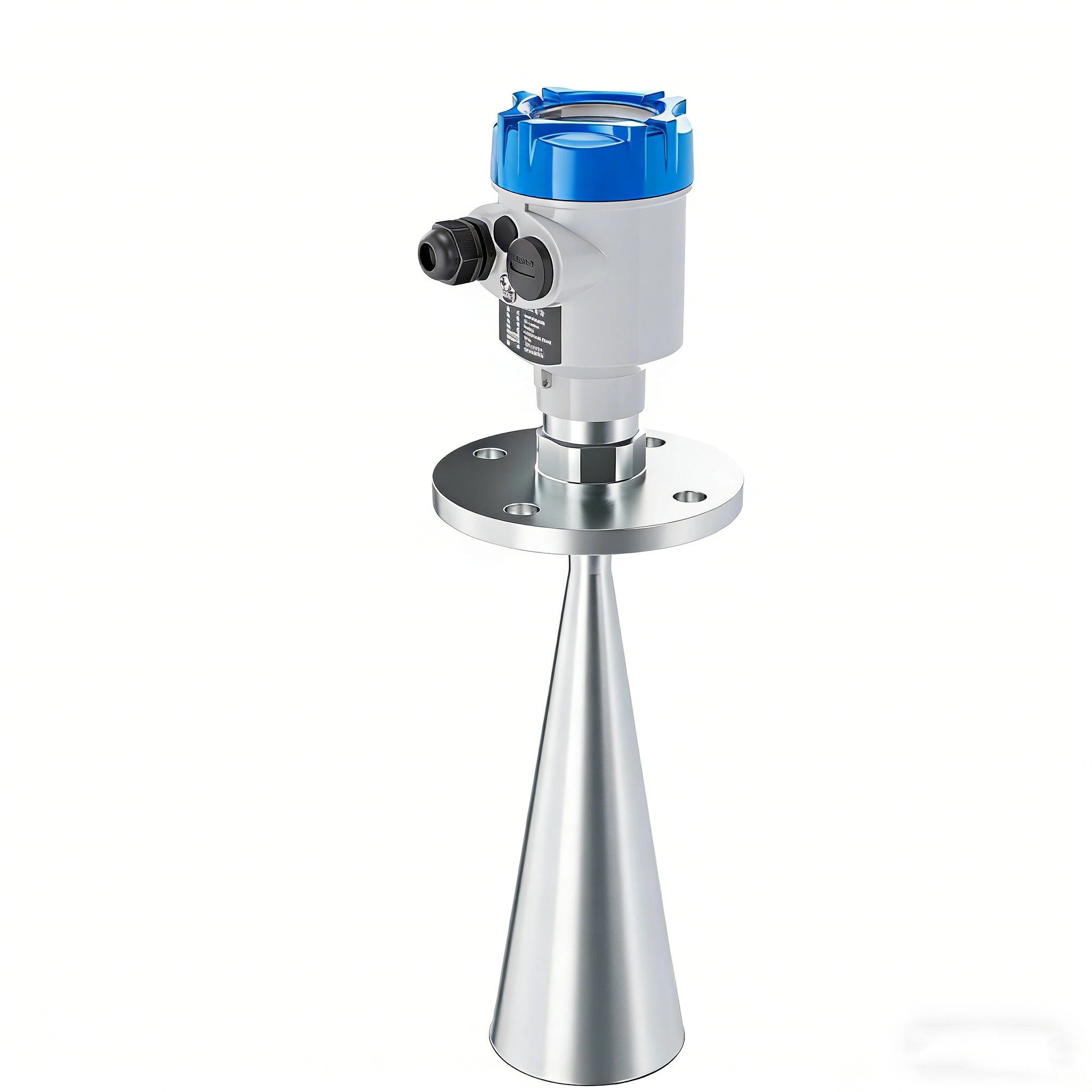

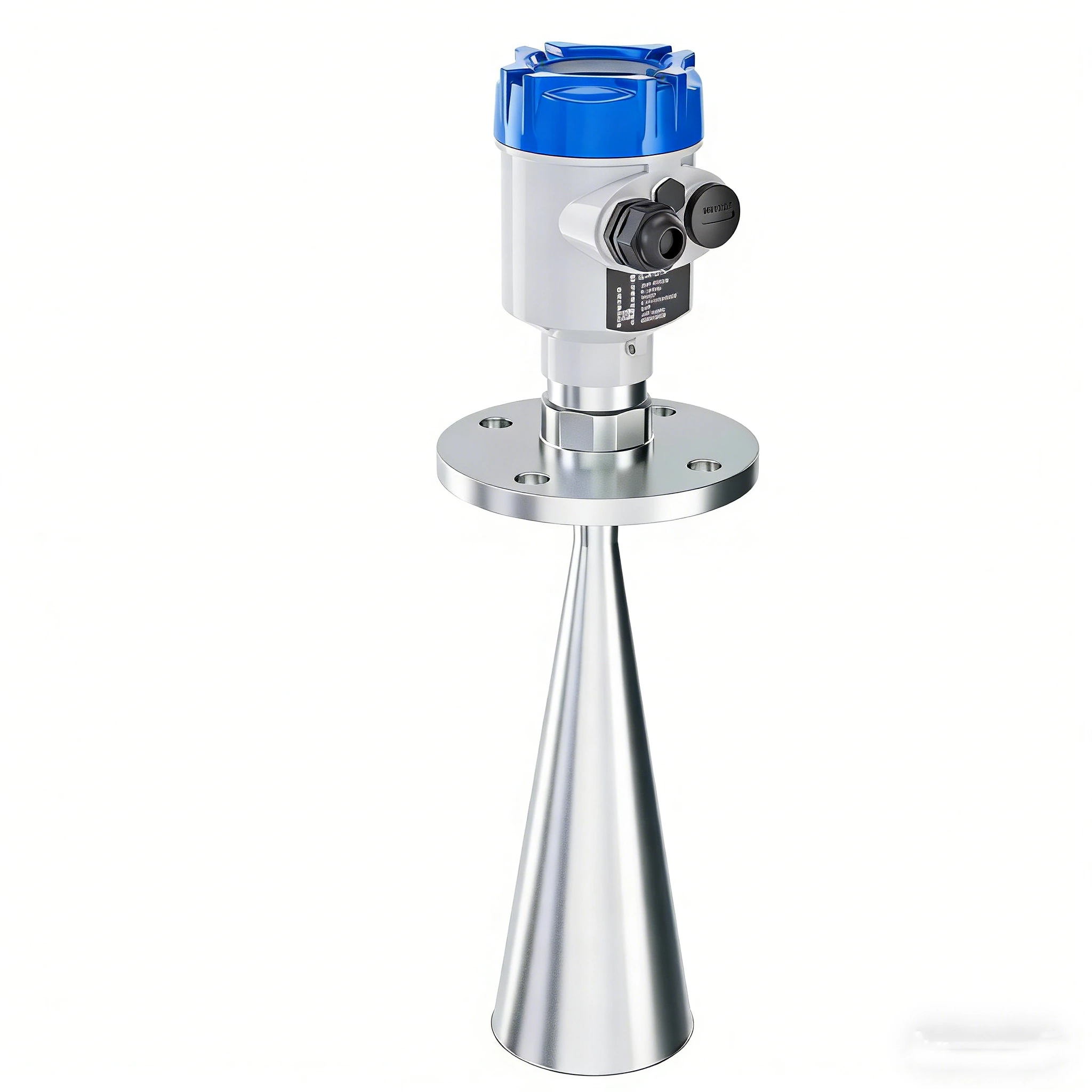

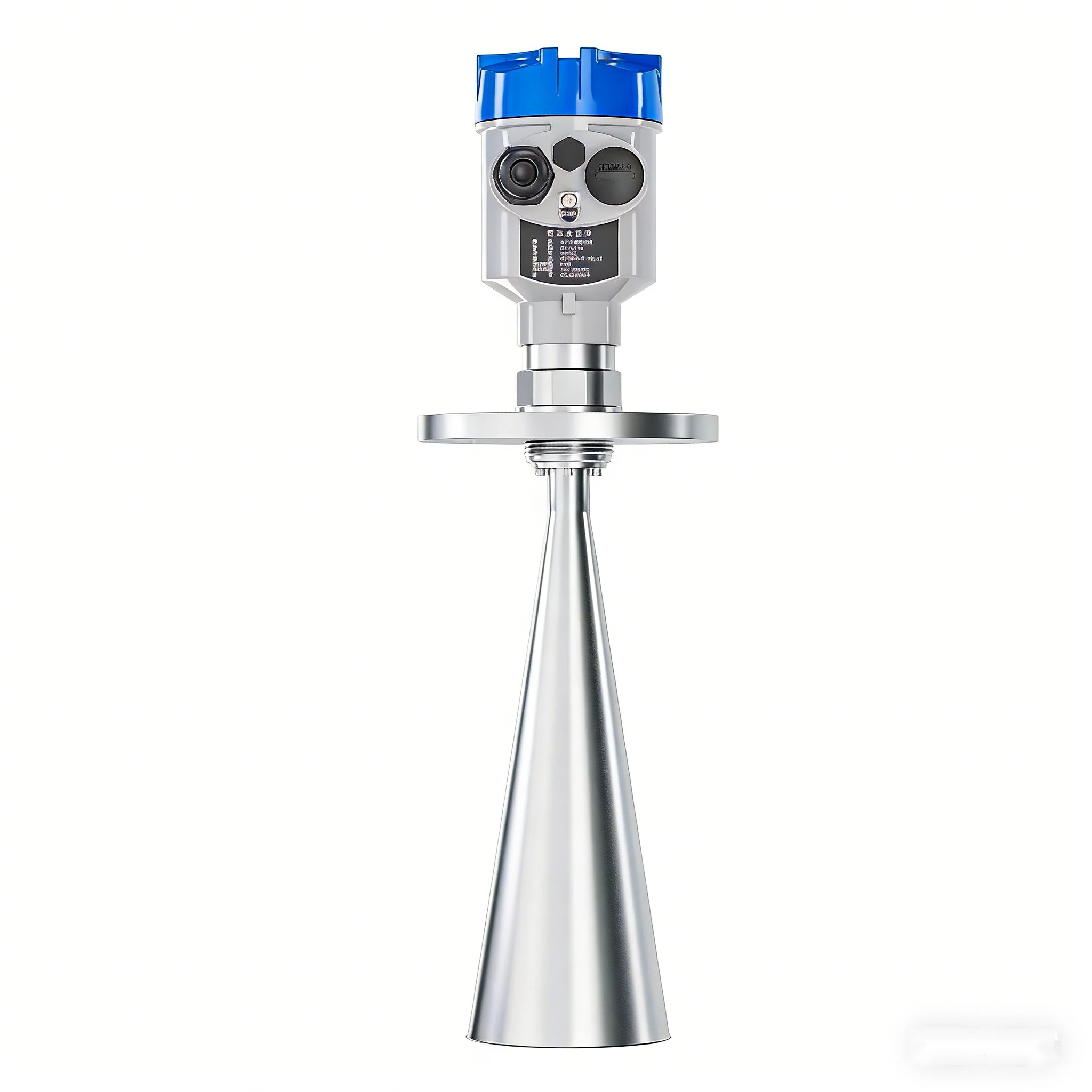

SIN-RD903 Solid material radar level meter

Range: 0~70 m
Application:  Solid material, strong dust, easy to crystallize, condensation occasion
Frequency Range: 26GHz
  • Introduction

Radar tank level sensor is a type of non-contact level measurement instrument that uses radar technology to accurately and reliably measure the level of liquids, slurries, and powders in tanks or vessels. These sensors emit high-frequency electromagnetic waves that penetrate the surface of the material and reflect back to the sensor. By analyzing the time delay and amplitude of the reflected waves, the radar sensor can calculate the distance between the sensor and the material surface, and hence determine the level of the material in the tank.

Radar tank level sensors are suitable for a wide range of applications, including petroleum and chemical processing, food and beverage production, water and wastewater treatment, and many others. They offer high accuracy, stability, and reliability, and can operate in harsh and hazardous environments without the need for frequent maintenance.

  • Specification

 Product  Radar level meter
 Model SIN-RD903
 Measure range 0-70 meters
 Application Solid material, strong dust, easy to crystallize, condensation occasion
 Process Connection Universal flange
 Medium Temperature (-40~130)°C (standard type) (-40~230)°C (high temperature type)
 Process Pressure    -0.1 ~ 0.3 MPa (universal flange); -0.1~4.0 MPa (flat flange)
 Accuracy ±20mm~±30mm
 Protection Grade IP67
 Frequency Range 26GHz
 Signal Output 4-20mA (Two-wire/Four)
RS485/Modbus
 Power supply 2-wire(DC24V)/ 4-wire(DC24V /AC220V)
