Specification
| Product | Sanitary Turbine Flow Meter |
| Model | SIN-LWGY |
| Diameter Nominal | DN4~DN200 |
| Nominal Pressure | 1.0MPa; 1.6MPa; 2.5MPa; 4.0MPa; 6.3MPa |
| Accuracy | Level 0.5/1.0 |
| Medium viscosity | Less than 5×10-6m2/s(>5×10-6m2/s, the flowmeter should be calibrated with standard solution before use） |
| Medium Temperature | Regular model:-20℃~+80℃ ; High temperature:-20℃~+120℃ |
| Ambient temperature | -20℃~+60℃ |
| Relative humidity | 5% to 90% |
| Repeatability | 1/3 of the accuracy grade |
| Power Supply | 3.6V lithium battery; 12VDC; 24VDC |
| Output Signal | Pulse signal、4~20mA current signal、Modbus protocol |
| Protection level | IP65(IP67, IP68 available upon negotiation, pulse head is IP00) |
-
Introduction

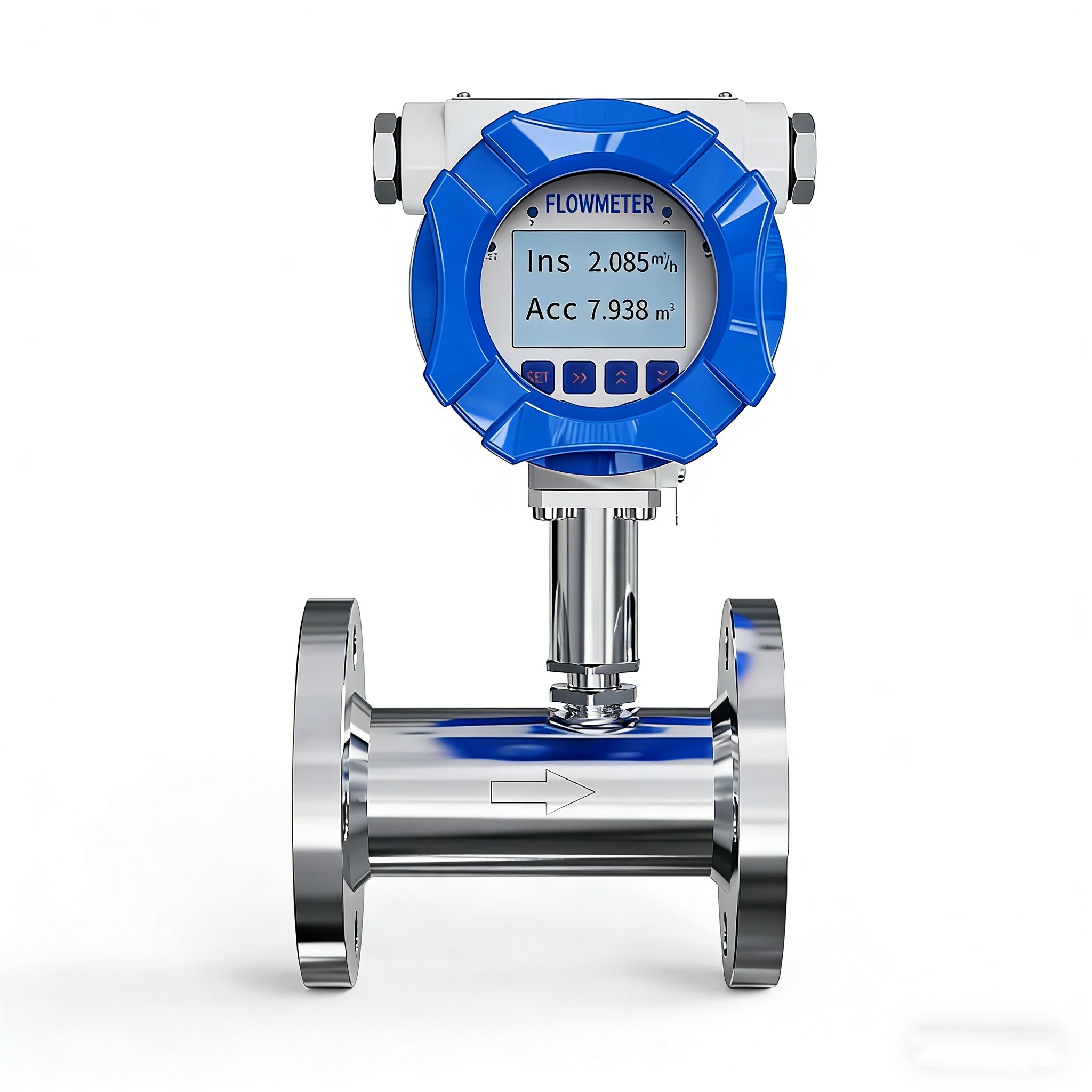

SIN-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.
-
