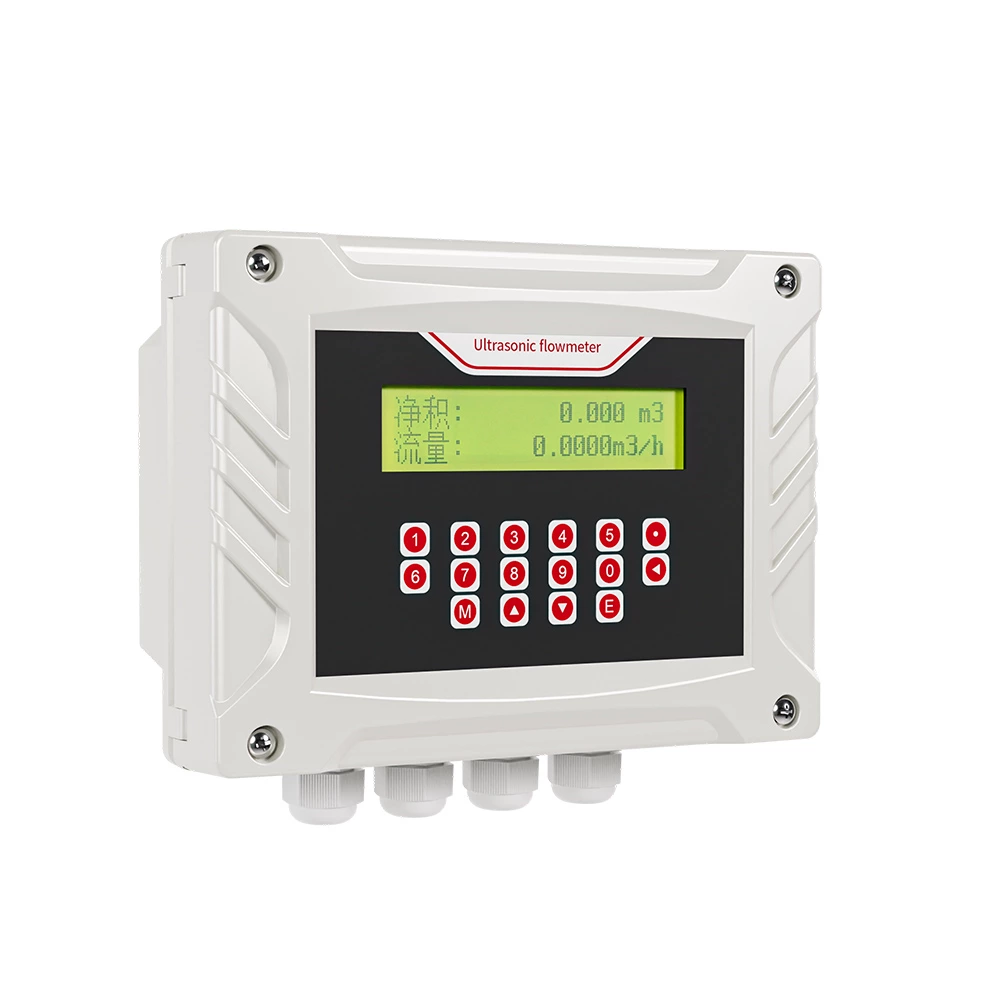

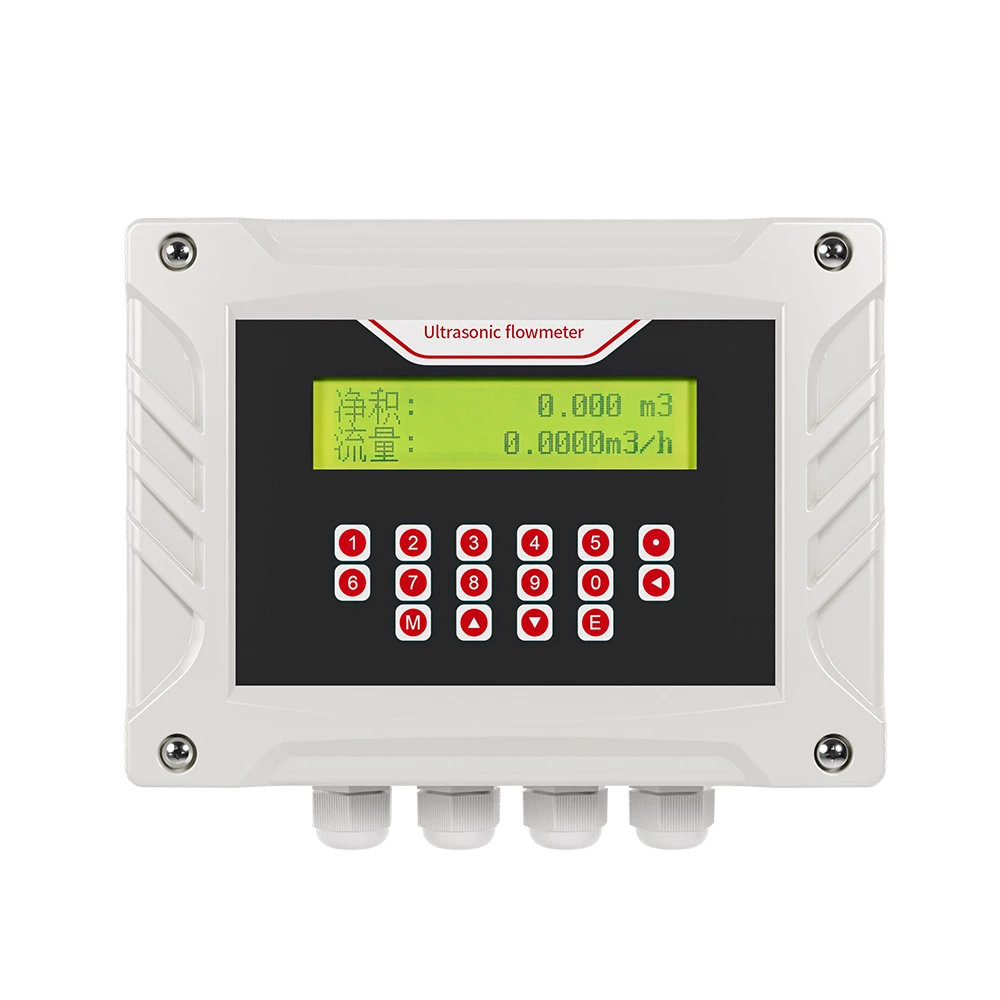

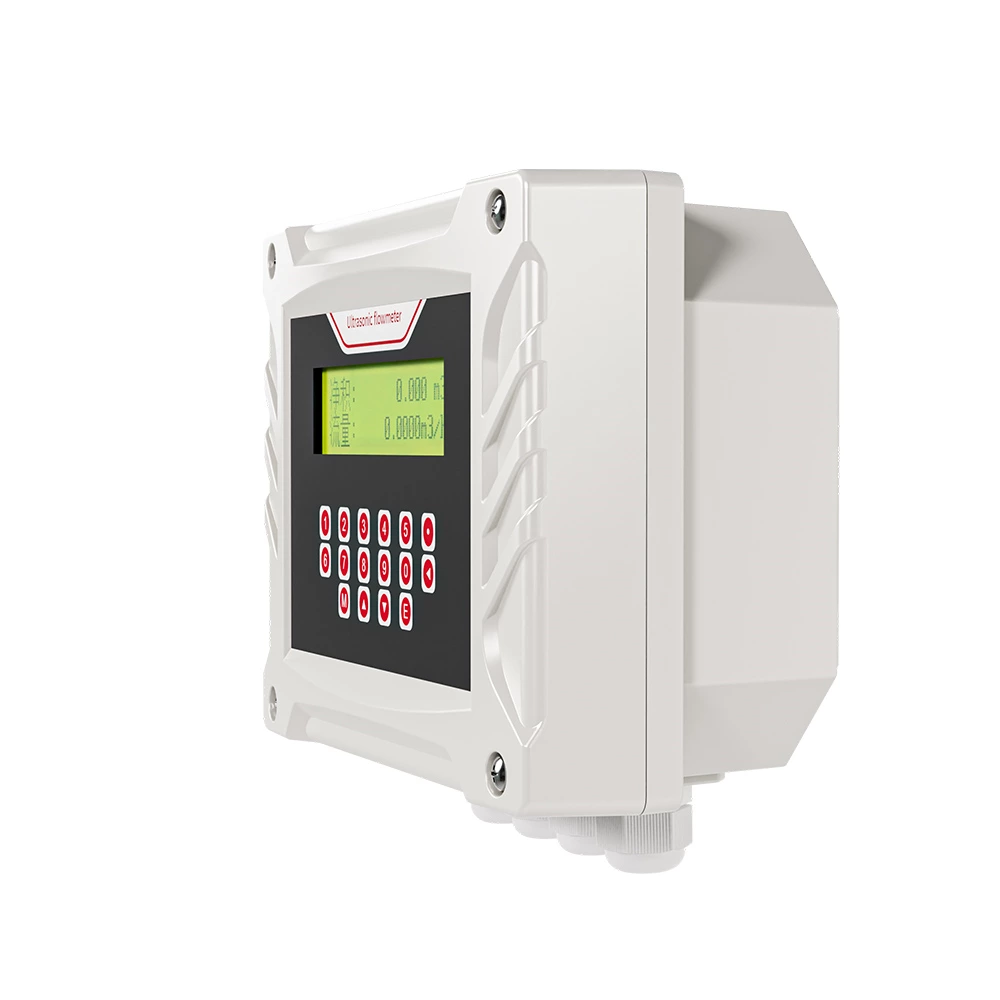

SIN-FSC400 Wall-Mounted Ultrasonic Flow Meter
Broad Industrial Applications Suitable for Most Homogeneous Liquids

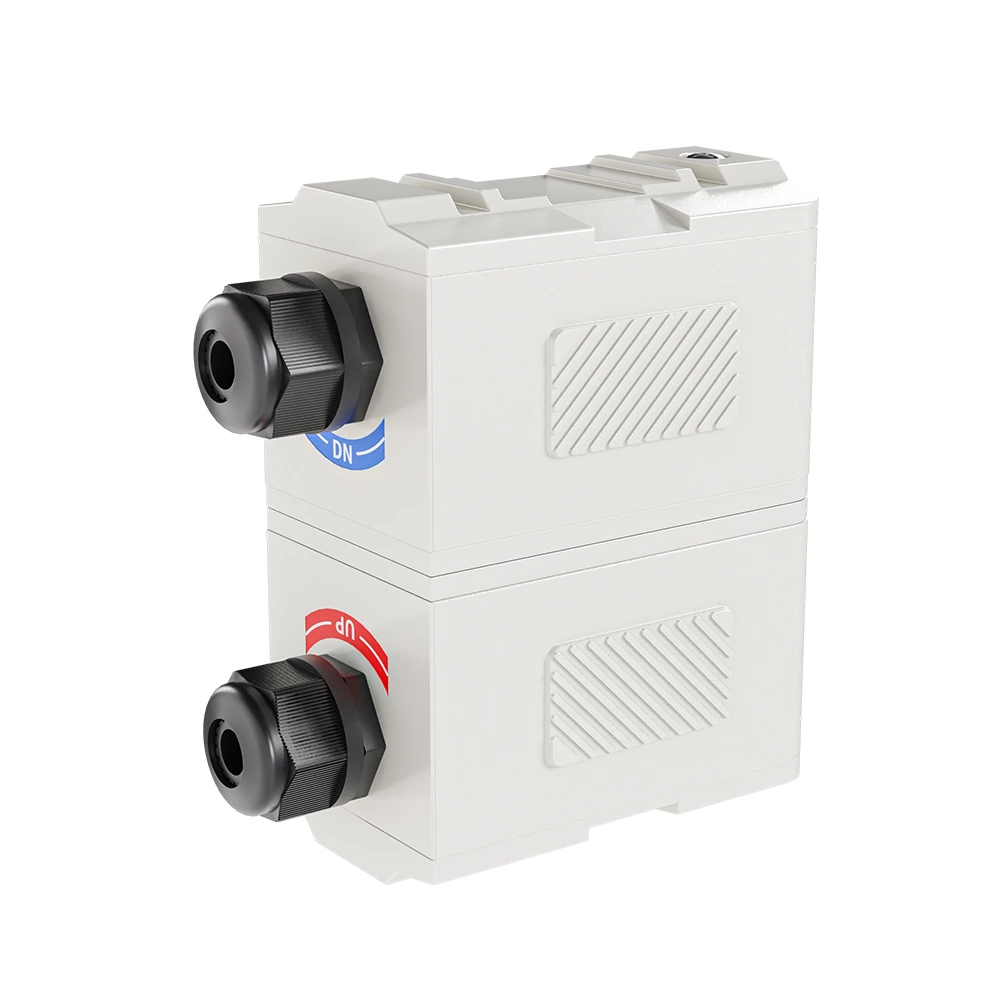

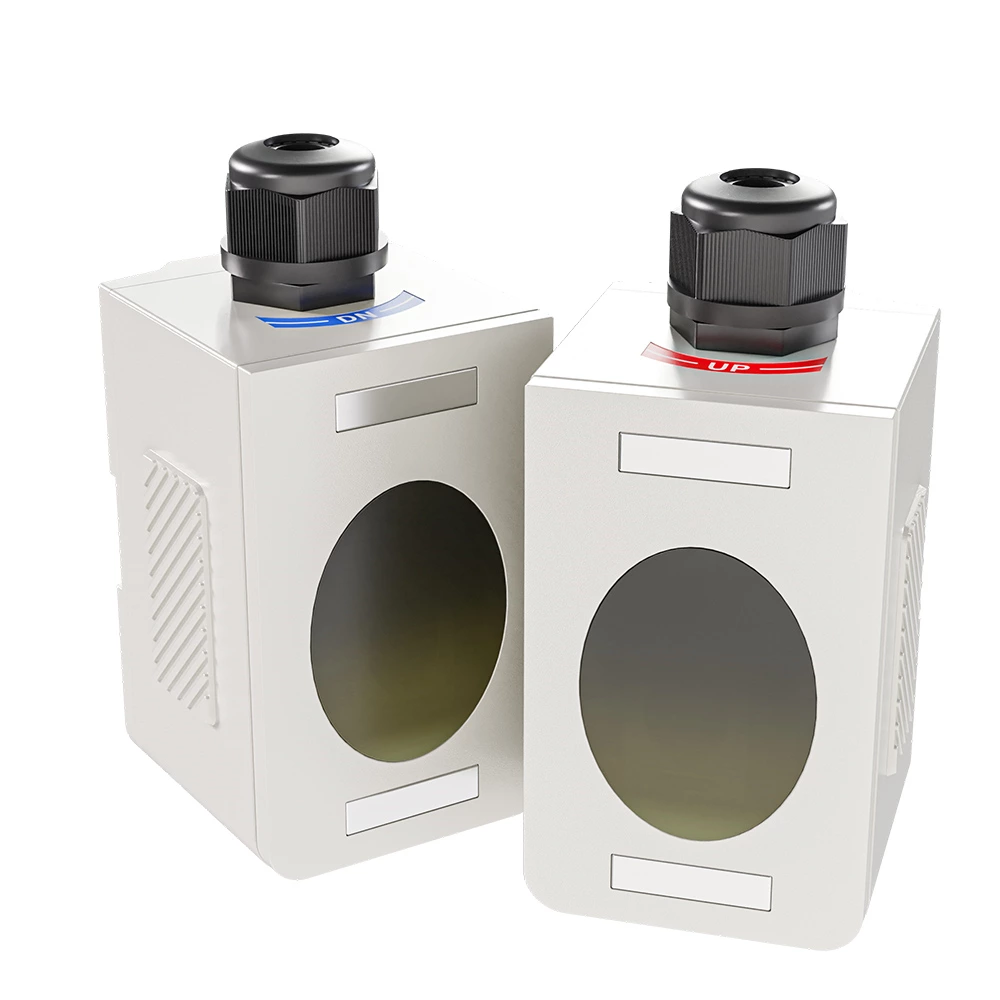

Clamp-On and Insertion Sensor Options Enable Easy, Non-Intrusive Installation Without Flow Interruption
Unaffected by Pipe Wall or Lining Materials Ensures High Measurement Accuracy
Wide Operating Temperature Range from -30°C to 90°C Depending on Model Selection
High Accuracy Rating of 1.0 Grade for Reliable Performance
Versatile Output and Power Supply Options Including Pulse, 4-20mA, RS485, and SPST with Dual 24VDC/220VAC Power
Supply Compatibility
| Specification | Detail |
|---|---|
| Model Type | Medium-sized clamp-on (DN50–DN700) | Standard insertion (DN80–DN6000) | Extended insertion (DN80–DN6000) |
| Temperature Range | -30°C to 90°C |
| Accuracy | 1.0 grade |
| Output & Power Supply | Pulse + 4-20mA + RS485 + SPST, 24VDC/220VAC dual power supply |
| Electrical Interface & Housing Material | M20*1.5 cable gland, plastic ABS, IP65/IP68 |
| Cable Length Options | Standard: 5m, 10m, 20m | Custom: Up to 100m |
SUP-FSC400 Ultrasonic Flow Meter
The SUP-FSC400 Ultrasonic Flow Meter is designed for continuous measurement of most homogeneous liquids in industrial environments. It supports heat measurement through integrated temperature sensors and offers both clamp-on and insertion types for versatile installation options. These meters are ideal for industries such as petroleum, chemical, power generation, and food processing.
Key Features:
- Broad industrial applications, suitable for clean liquids without high concentrations of particles or bubbles.
- Clamp-on and insertion options, ensuring easy, non-intrusive installation without flow interruption.
- Measurement accuracy unaffected by pipe wall or lining materials.
- Optional heat measurement, integrating temperature sensors for energy calculations.
- Dual power supply (24VDC/220VAC), Pulse + 4-20mA + RS485 output for seamless integration with existing systems.
Applications include:
- Petroleum industry
- Chemical manufacturing
- Power generation facilities
- Food processing plants
*Available in various sizes and configurations to suit different pipeline diameters and environmental conditions. Choose from standard or extended insertion types for DN80–DN6000 pipelines, or medium-sized clamp-on models for DN50–DN700 pipelines.
