Specification
| Product | Vortex flow meter |
| Model | SIN-LUGB |
| Wafer connection | DN15-DN300 (priority PN2.5MPa) |
| Flange connection | DN15-DN50 (priority PN2.5MPa) |
| DN65-DN200 (priority PN1.6MPa) | |
| DN250-DN300 (priority PN1.0MPa) | |
| Accuracy | 1.0% 1.5% |
| Range Ratio | 1:8 |
| Medium Temperature | -40℃~+150℃，-40℃~+260℃，-40℃~+300℃ |
| Power Supply | 24VDC±5%, lithium battery 3.6V |
| Current output | 2-wire (4~20) mA, load resistance ≤ 300 Ω (including wire resistance) |
| Communication interface | RS485,HART |
| Body Materials | Stainless steel |
| Ingress protection | IP65 |
| Display Language | English, Chinese |
-
Introduction

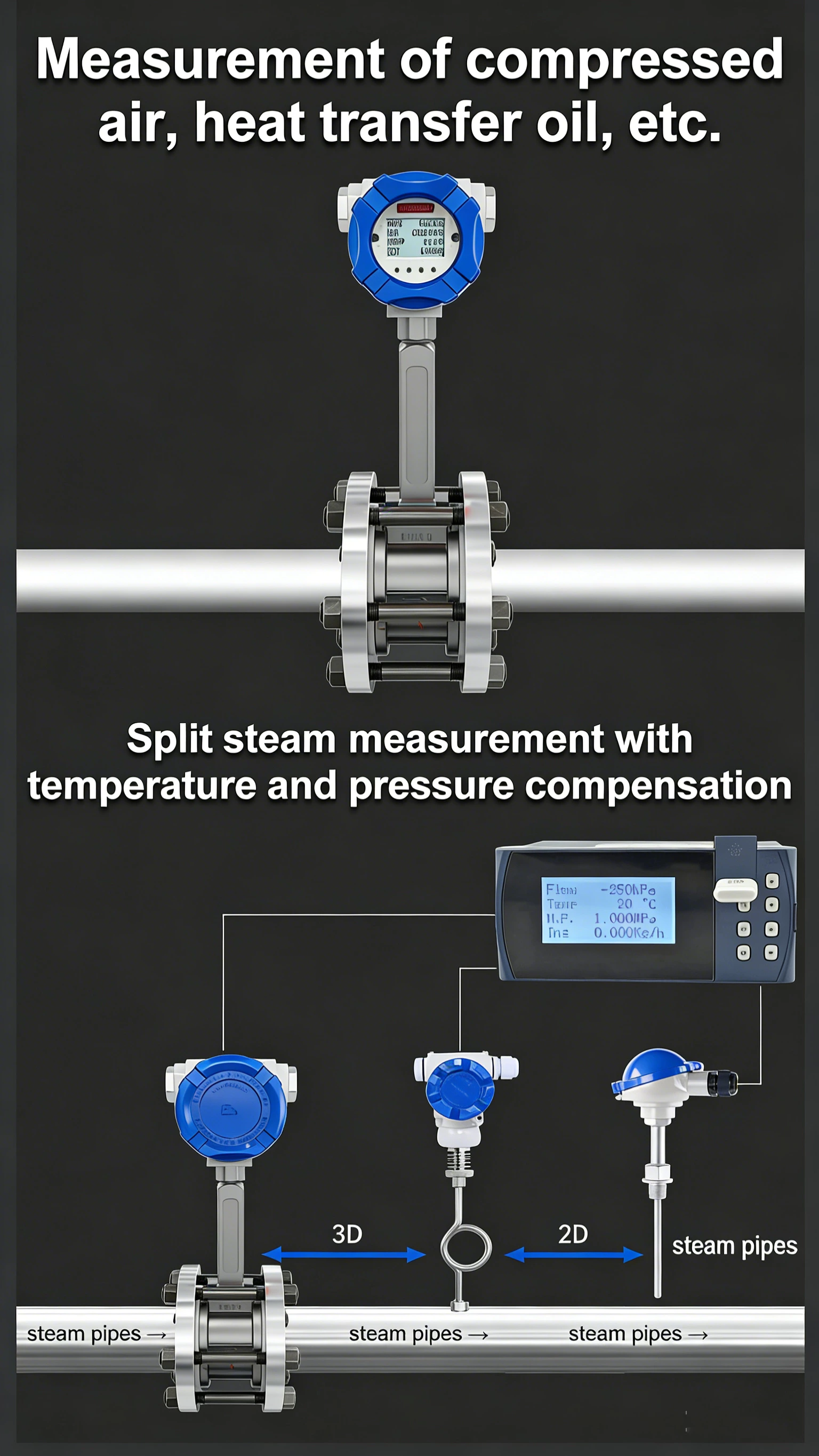

SIN-LUGB Vortex flow meter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal to measure the flow. With temperature and pressure compensation, it is suitable for the detection of gas flows in different environments, such as steam and compressed air and other gas.
Description
-

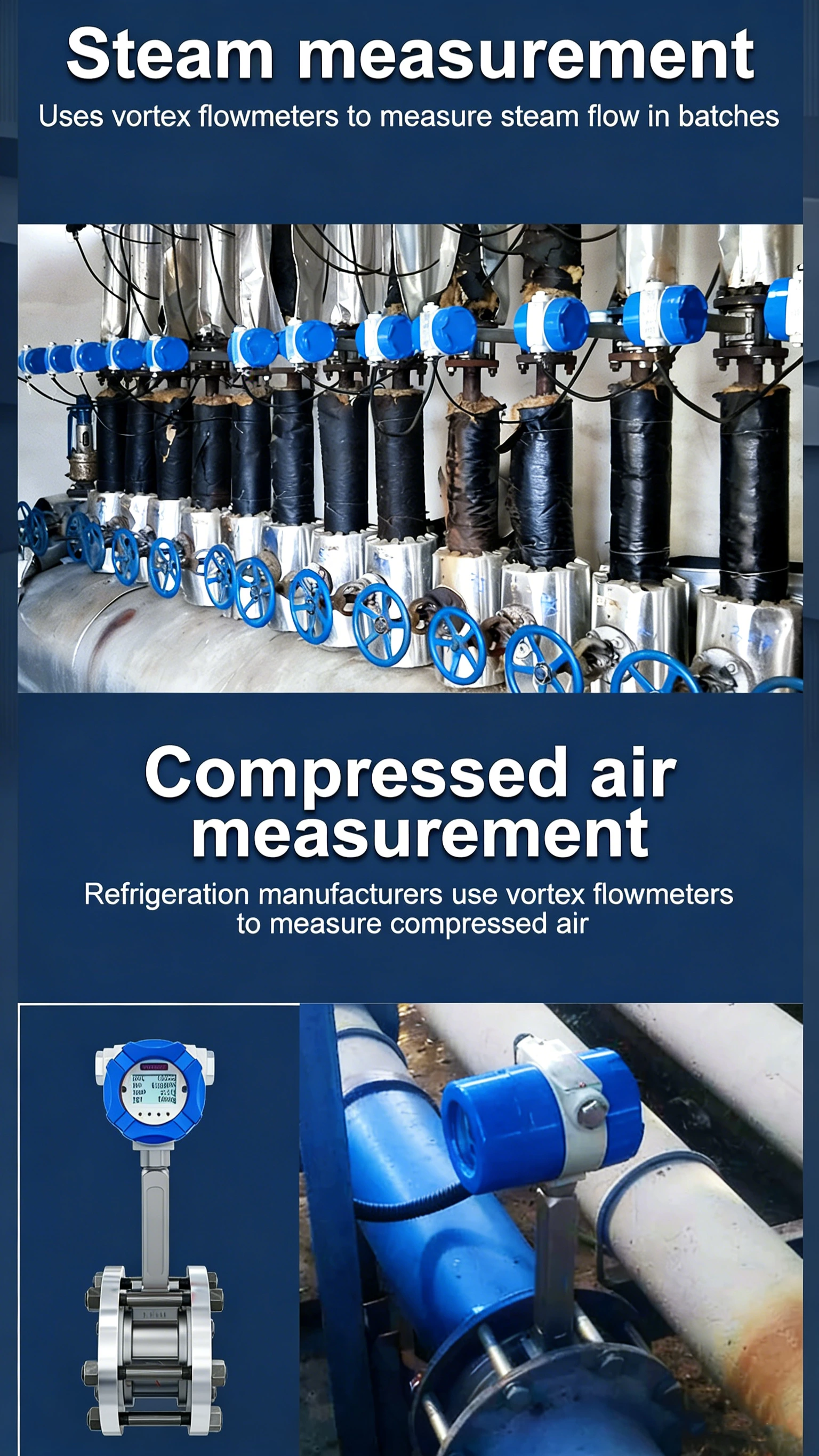

Application
