Introduction
This portable meter features a 4.3-inch high-contrast LCD touchscreen and an intelligent operating system for full management of users, calibration, electrodes, methods, data, and logs. It supports automatic, timed, and continuous measurement modes, with both automatic and manual temperature compensation for precise results. The auto-hold function detects and locks stable readings for reliability. GLP-compliant storage allows up to 1,000 data sets per parameter, with built-in tools for reviewing and recalculating measurements. Designed for field use, the instrument offers IP65 waterproof protection, USB connectivity, automatic power-off to conserve battery, and dissolved oxygen capabilities including calibration with air-saturated or zero-oxygen water, automatic barometric pressure compensation, manual salinity adjustment, and selectable pressure units.
-
Specification

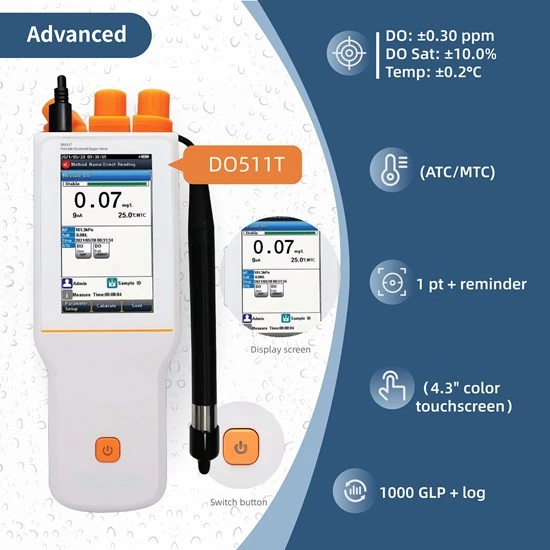

| Model | DO511T | |
| Parameters | DO/Temp(DO Saturation) | |
| Dissolved Oxygen Concentration |
Range | 0.00 to 20.00 ppm |
| Resolution | 0.01mg/L | |
| Accuracy | ± 0.3ppm | |
| DO Saturation | Range | (0.0 to 200.0)% |
| Resolution | 0.10% | |
| Accuracy | ± 10.0% | |
| Temperature | Range | 0 to 50 ºC |
| Resolution | 0.1 | |
| Accuracy | ± 0.2 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous) |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Inputs | DO with Temp. Probe | 4-pin aviation connector |
| Outputs | USB | USB 2.0 flash memory device, PC, scanner |
| Bluetooth | Yes | |
| Data Storage | 1000 Groups | |
| Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
|
| IP Rating | IP65 | |
| Dimensions | 96 × 201 × 55 mm | |
-
FEATURES

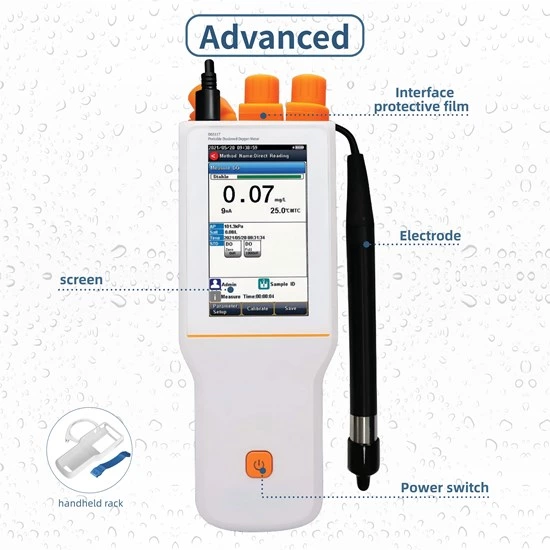

- Display: Color high contrast LCD touchscreen, 4.3 inches.
- System: Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, log management, etc.
- Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.

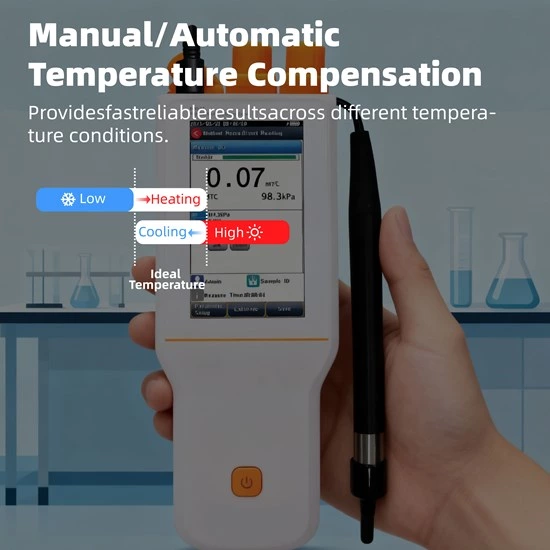

- Accuracy: Automatic/Manual temperature compensation ensures accurate results.
- Stability: Auto-hold feature senses and locks the measurement endpoint.
- Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
- Analysis: Data analysis feature helps users review, compare, and recalculate results.
- Connectivity: Support for USB communication.
- Power: Auto-power off feature effectively extends the battery service life.
- Recovery: Reset feature automatically resumes all settings to factory default options.

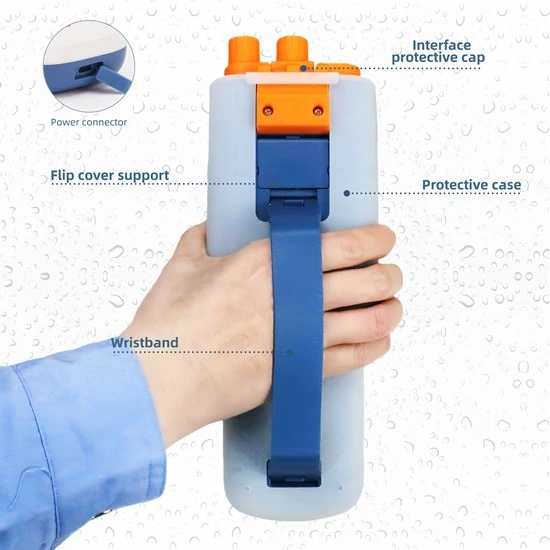

- Protection: IP65 waterproof. The portable meter is suitable for field and outdoor measurements.
- Calibration: Support for air-saturated water or zero oxygen calibration.
- Compensation: Automatic barometric pressure compensation.
- Correction: Manual salinity factor correction.
- Flexibility: Selectable pressure units including kPa, mbar, Torr, and atm.
