Specification

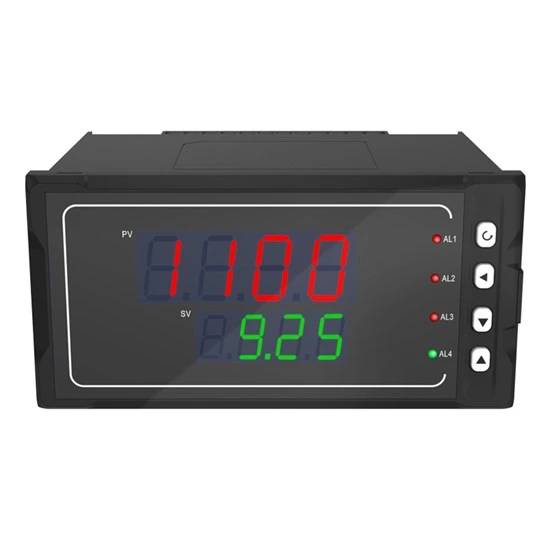

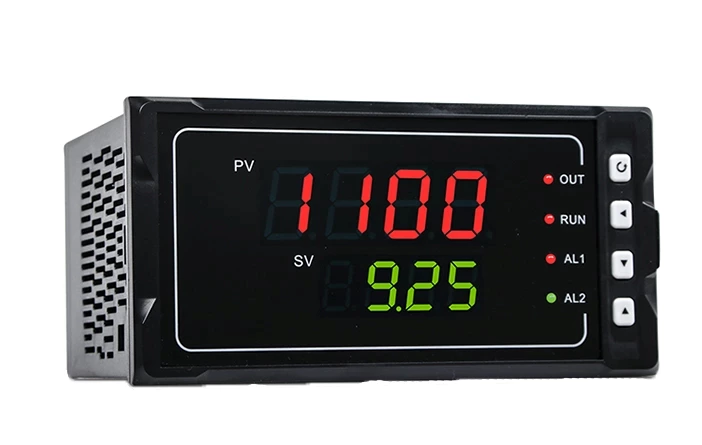

| Product | Digital meter/ digital display controller |
| Model | SIN-1100 |
| Display | Dual-screen LED display |
| Dimension | A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm G. 48*48*110mm |
| Input | Thermocouple B, S, K, E, T, J, R, N, Wre3-25, Wre5-26; RTD: Cu50, Cu53, Cu100, Pt100, BA1, BA2 Analog signal: -100～100mV, 4-20mA, 0-5V, 0-10V, 1-5V |
| Output | 4-20mA (RL≤600Ω) RS485 Modbus-RTU Relay output |
| Power supply | AC/DC100~240V (AC/50-60Hz) DC 20~29V |
-
Main features
-
Single-circuit digital display controller provides easy operation with measurement precision of 0.3%;
-
7 types of dimensions available;
-
Double four-digit LED display, used to measure and monitor various industrial processes including voltage, current, frequency, and pressure;
-
Supporting 2-way alarm, 1way control output or RS485 communication interface adopting
-
Standard MODBUS protocol, 1-way DC24V feed output; photoelectric isolation between input, output
-
Standard snap-in installation;
-
Power supply: 100-240V AC/DC or 20-29V DC universal;
-
