Specification
| Product | Digital Single-loop digital display controller |
| Model | SIN-110T |
| Display | Dual-screen LED display |
| Dimension | C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm |
| Measurement accuracy | ±0.3%FS |
| Analog output | Analog output----4-20mA, 1-5V(RL≤500Ω), 1-5V (RL≥250kΩ) |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting; Relay contact capacity： AC125V/0.5A(small)DC24V/0.5A(small) (Resistance C load) AC220V/2A(big)DC24V/2A(big) (Resistive load) Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature(0~50℃) Relative humidity: (5~85%)RH |
-

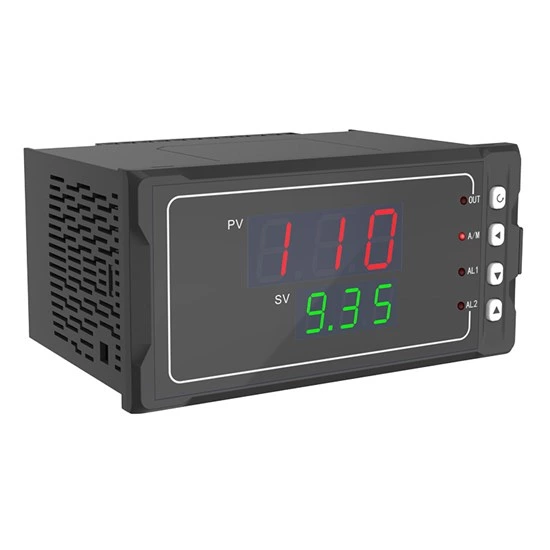

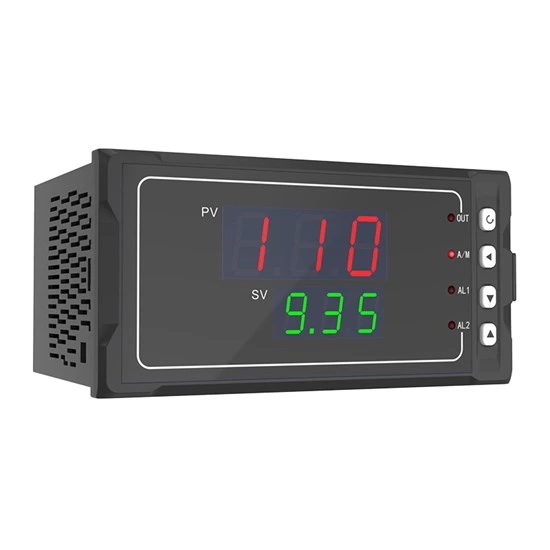

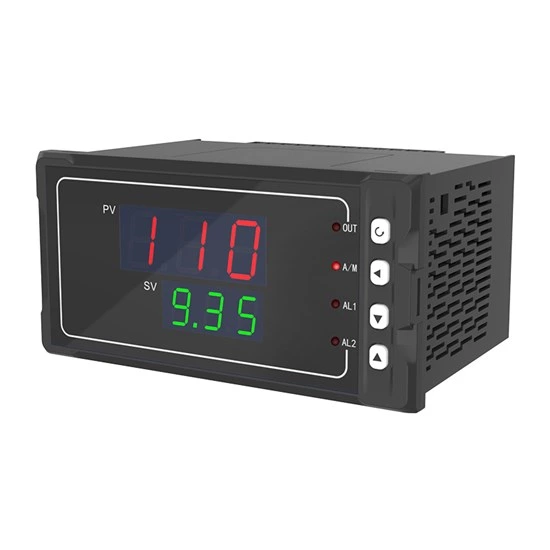

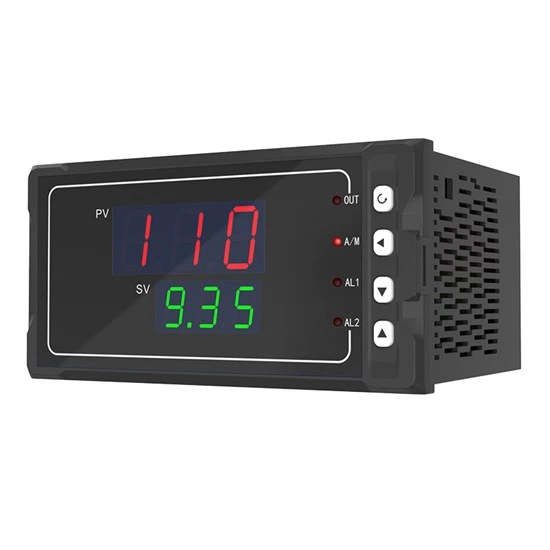

Introduction
This economical 3-digit single-loop digital display controller features a modular design for easy operation and high cost efficiency. It is suitable for temperature measurement and control within the range of 0–999 °C, and is widely used in light industrial machinery, ovens, laboratory equipment, and heating or cooling systems. The instrument uses a dual-row 3-digit LED display and supports multiple RTD and thermocouple input types with an accuracy of up to 0.3%. Five size options are available, with support for two alarm outputs and signal transmission. Optical isolation is applied to the input, output, and power terminals. The controller supports 100–240 V AC/DC or 12–36 V DC switching power supplies, features standard snap-on installation, and operates reliably at ambient temperatures of 0–50 °C and relative humidity of 5–85% RH (non-condensing).
Terminal Assignments and Dimensions：

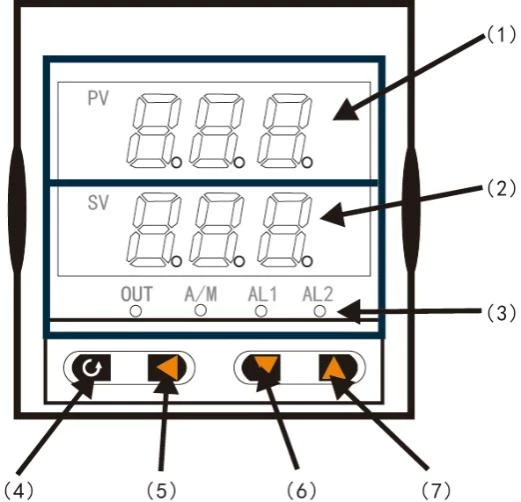

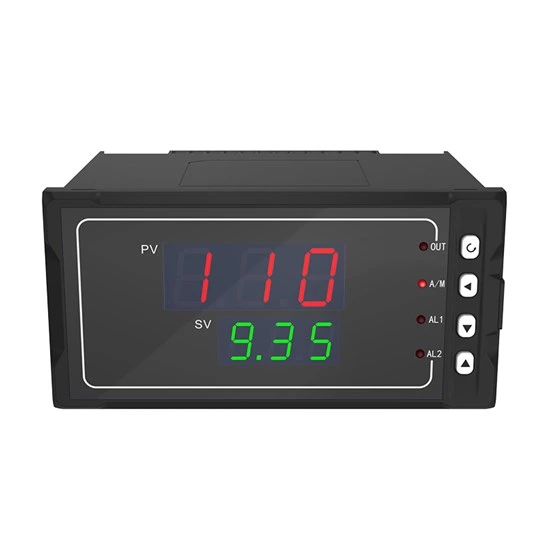

(1) PV display window (measured value)
(2) SV display window
In measurement state, the display is defined by dis in the level-1 parameters; in parameters setting state, it displays the set value.
(3) The first alarm (AL1) and the second alarm (AL2) indicators, running lights (OUT), A/M indicators without effect
(4) Confirm key
(5) Shift key
(6) Down key
(7) Up key
