Specification

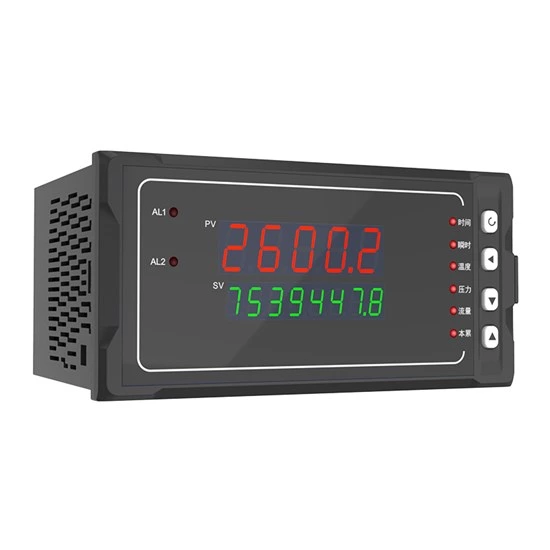

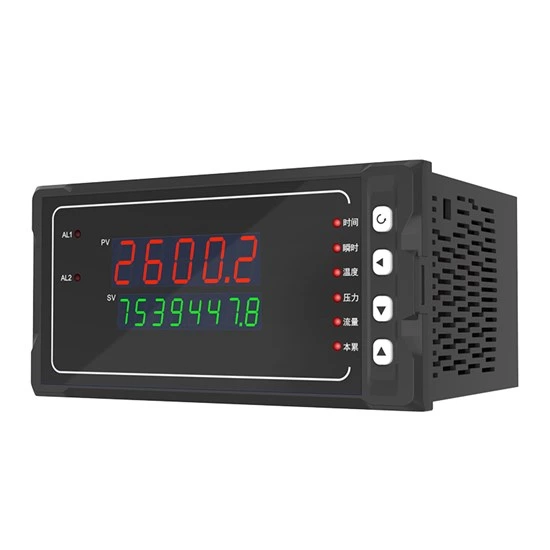

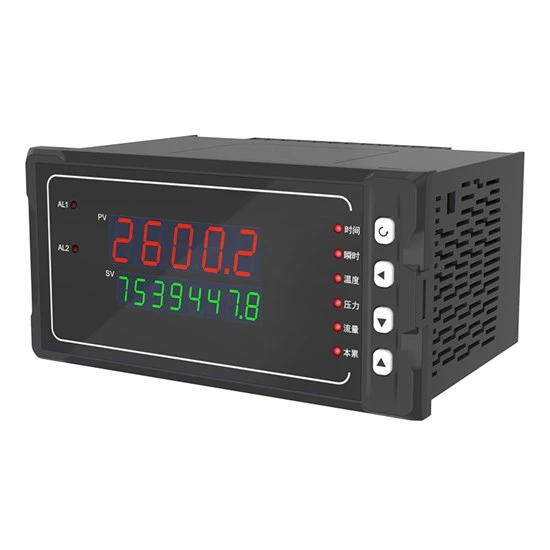

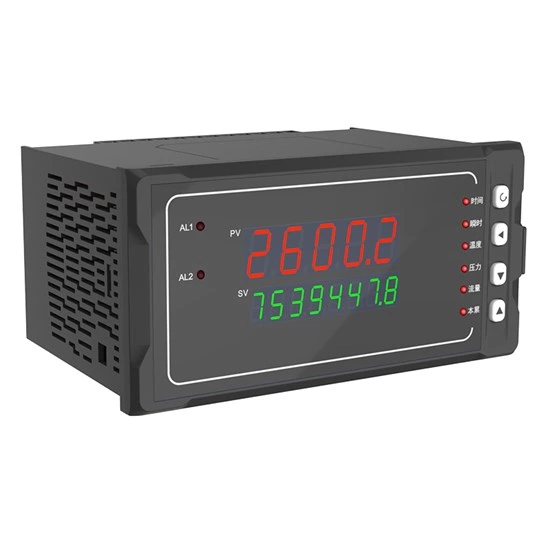

| Product | LCD Flow (Heat) Totalizer / Recorder |
| Model | SIN-2600 |
| Dimension | A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm |
| Measurement accuracy | ±0.2%FS |
| Transmission output | Analog output----4-20mA, 1-5v, 0-10mA, 0-5V, 0-20mA, 0-10V |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting; Relay capacity： AC125V/0.5A(small) DC24V/0.5A(small) (Resistive load) AC220V/2A(big) DC24V/2A(big) (Resistive load) Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature (-10~50℃) No condensation, no icing |
| Printout | RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions |
-
Introduction
The LCD Flow Totalizer is designed for precise steam flow measurement and trade settlement in regional central heating systems. It features a 32-bit ARM processor, high-speed A/D conversion, large-capacity FLASH memory, embedded RTOS, and USB Host support, with surface-mount technology for reliability and strong EMC performance. Capable of automatically identifying saturated and superheated steam, it also supports process monitoring and thermal volume control, with up to 720 days of historical data storage.
