Specification

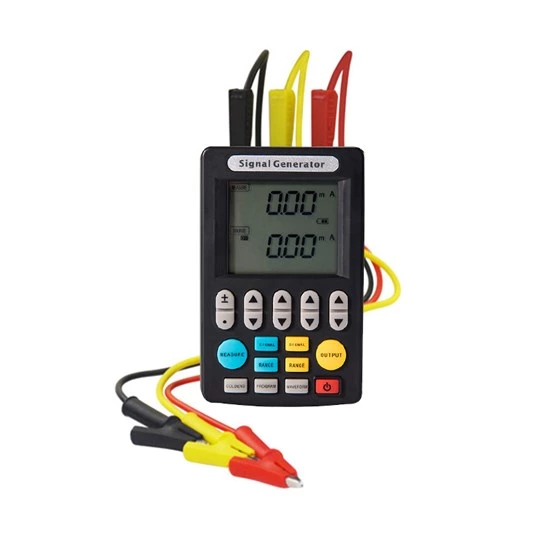

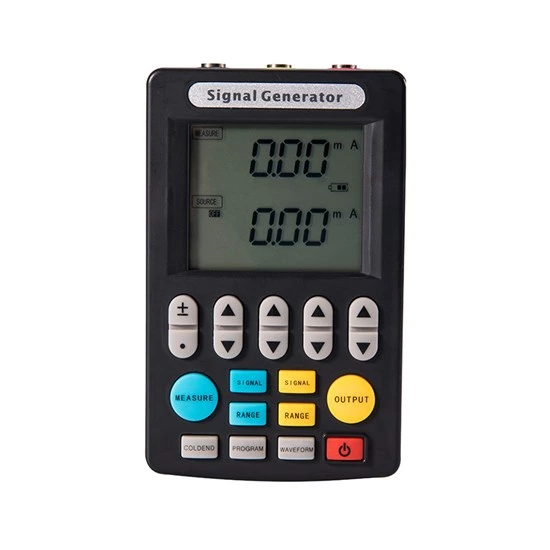

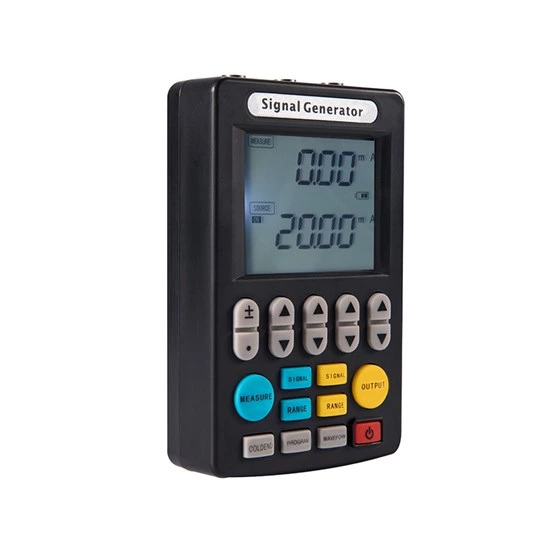

| Product | Signal generator |
| Model | SIN-C703 |
| Operating temperature and humidity | -10~55℃, 20~80% RH |
| Storage temperature | -20-70℃ |
| Size | 115*70*26(mm) |
| Weight | 300g |
| Power | 3.7V lithium battery or 5V/1A power adapter |
| Power dissipation | 300mA, 7~10hour |
| OCP | 30V |
-
Introduction
-
Features
-
Sources and reads mA, mV, V, Ω, RTD and TC
-
Keypad to enter output parameters directly
-
Concurrent input / output, convenient to operate
-
Sub display of sources and reads (mA, mV, V)
-
Large 2-line LCD with backlight display
-
24 VDC loop power supply
-
Thermocouple measurement / output with automatic or manual cold junction compensation
-
Corresponds to various types of source pattern (Step sweep / Linear sweep / Manual step)
-
Lithium battery available, continuous use for at least 5 hours
