Introduction
The isolator delivers isolated power to 2-wire and 3-wire transmitters and converts their current or voltage signals into outputs compatible with other instruments. By providing three-terminal isolation between input, output, and power, it enhances anti-interference performance and ensures reliable, stable operation in industrial process control systems. Suitable for use with DCS, PLCs, and a variety of other instruments, this isolator is widely applied in major projects across industries such as petroleum, petrochemical, manufacturing, power, and metallurgy.
Note: This product is not intended for explosion-proof environments.
-
Specification
| Input signal | (4~20)mA、(0~20)mA、 (1~5)V、(0~5)V、(2~10)V、(0~10)V |
| Output signal | (0~20)mA、(4~20)mA、 (0~5)V、(1~5)V、(0~10)V、(2~10)V |
| Output load resistance | (4~20)mA、(0~20)mA: RL≤550Ω; (0~5)V、(1~5)V、(0~10)V、(2~10)V: RL≥1MΩ |
| Transmission accuracy (20℃) | 0.1%FS |
| Response time | ≤400ms |
| EMC | EMC conforms to GB/T18268 (IEC 61326-1) requirements for industrial equipment application |
| Power supply | (20~35)VDC |
| Power consumption | Single-channel output：≤0.8W Double-channel output：≤1.4W |
| Operating temperature | (-20~60)℃ |
| Storage temperature | (-20~60)℃ |
| Relative humidity | 25%~85% |
| Dimensions | 117.5mm*110mm*13mm |
| Weight | 130g |
-
Features
- Isolation: The input-output adopts photoelectric isolation technology, providing stronger anti-interference ability compared to magnetic isolation.
- Efficiency: Low power consumption with efficient heat dissipation design.
- Output: Distributive output with current-limiting protection for increased reliability and safety.
- Load Capacity: Supports a maximum load of 550Ω for current output.

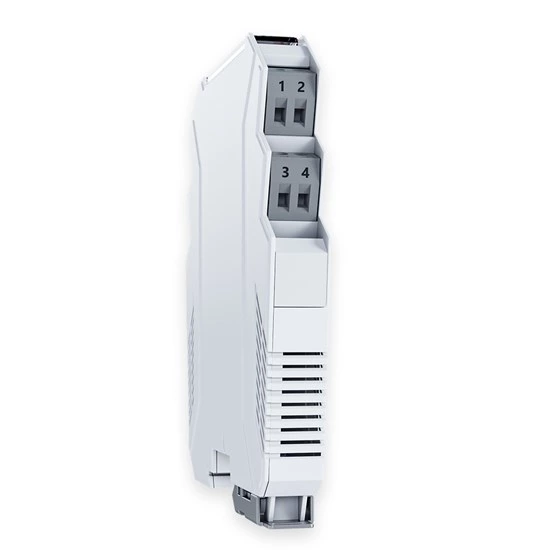

- Design: Ultra-thin design with a 13mm slim casing, saving installation space.
- Safety: Flame-retardant casing for enhanced safety.
