Specification
| Product | Single-loop digital display controller |
| Model | SIN-2100 |
| Dimension | A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F.72*72*110mm H. 48*48*110mm K.160*80*110mm L. 80*160*110mm M. 96*96*110mm |
| Measurement accuracy | ±0.2%FS |
| Transmission output | Analog output----4-20 mA, 1-5v, 0-10mA, 0-5V, 0-20mA, 0-10V |
| Alarm Output | ALM----With upper and lower limit alarm function, with alarm return difference setting; Relay capacity： AC125V/0.5A (small) DC24V/0.5A (small) (Resistive load) AC220V/2A(big) DC24V/2A(big) (Resistive load) Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature (-10~50℃) No condensation, no icing |
| Printout | RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions |
-
Introduction

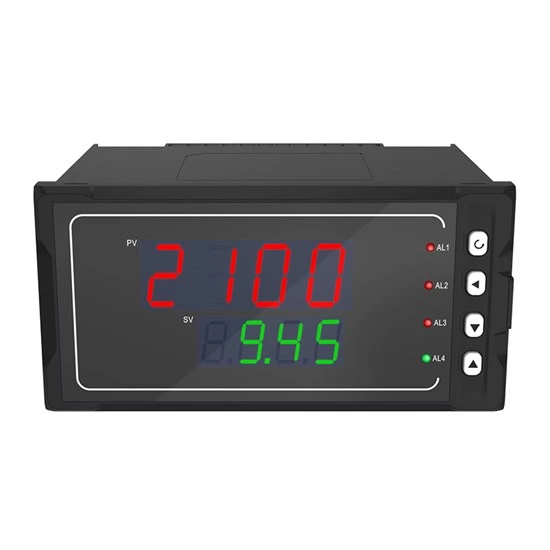

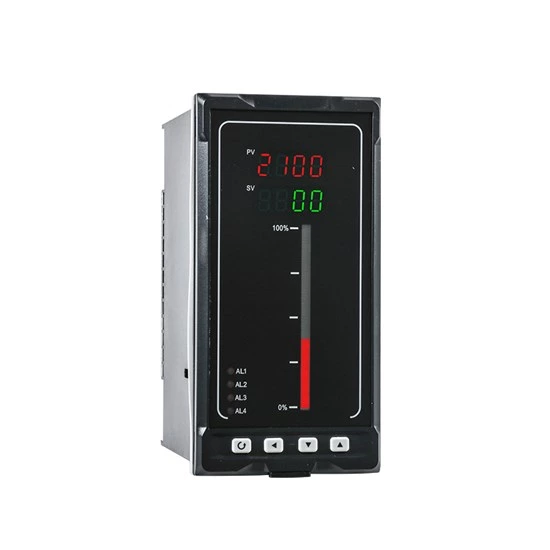

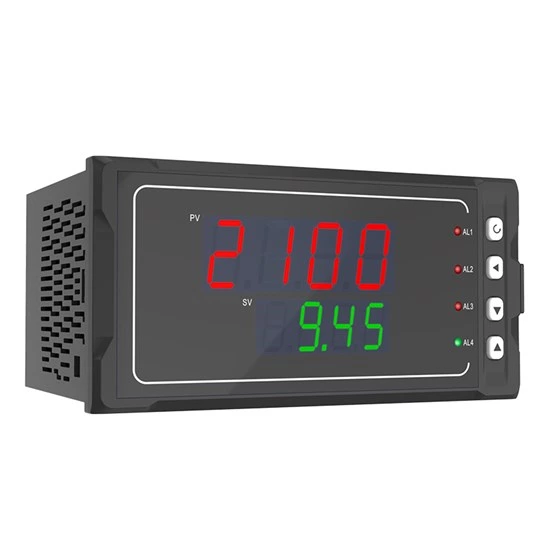

The single-loop digital display controller features automatic SMD packaging and strong anti-interference performance. Its dual-LED display allows flexible presentation of multiple parameters, and it supports factory reset for easier operation. Compatible with various sensors and transmitters, it can measure and display temperature, pressure, level, speed, force, and other physical variables, while providing alarm outputs, analog signals, and RS-485/RS-232 communication. Designed for precise regulation of a single process variable, it controls final elements like valves or heaters to maintain the desired setpoint and provides real-time monitoring.
Some specific features and advantages of single-loop display controllers include:
- Accuracy: These controllers are highly accurate, which is critical in industrial settings where even small variations in process variables can have significant consequences.
- Flexibility: Single-loop display controllers are highly versatile and can be used to regulate a wide range of process variables, including temperature, pressure, flow, and level.
- Ease of use: These controllers are typically user-friendly, with intuitive interfaces that allow operators to set the desired set point and make adjustments as needed.
- Data logging: Many modern single-loop display controllers include data logging capabilities, which allow operators to track performance over time and identify trends or potential issues.
- Cost-effective: Compared to more complex process control systems, single-loop display controllers are generally less expensive and easier to install and maintain.
Some common applications of single-loop display controllers include regulating the temperature of industrial ovens or furnaces, controlling the pressure of compressed air systems, and maintaining the flow rate of fluids in chemical processing plants.
